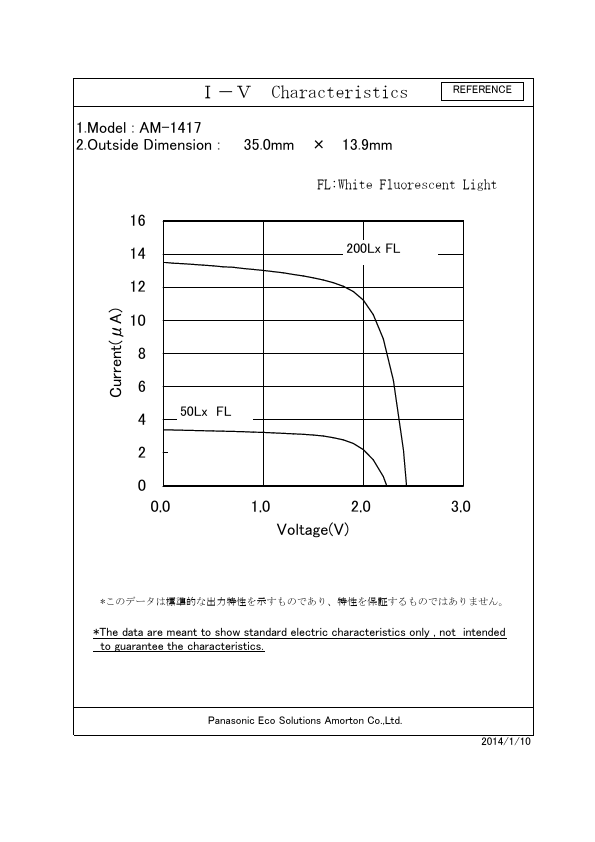

Ｉ－Ｖ Characteristics
1.Model : AM-1417 2.Outside Dimension : 35.0mm × 13.9mm
REFERENCE
Current(μA)
FL:White Fluorescent Light
16
14
200Lx FL
12
10
8
6
4
50Lx FL
2
0
0.0
1.0
2.0
3.0
Voltage(V)
*、。
*The data are meant to show standard electric characteristics only , not intended to guarantee the characteristics.
Panasonic Eco Solutions Amorton Co.,Ltd.
2014/1/10

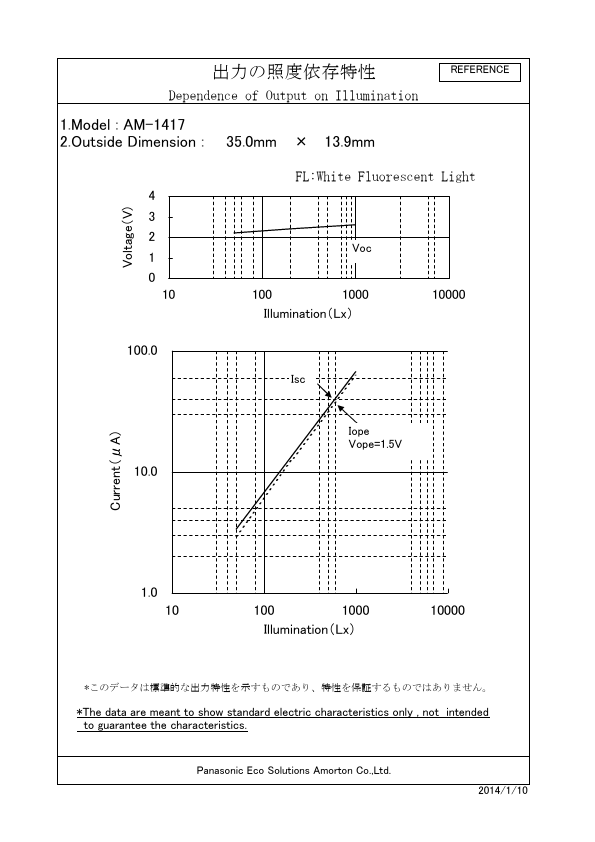

Dependence of Output on Illumination
1.Model : AM-1417 2.Outside Dimension : 35.0mm × 13.9mm
REFERENCE
Voltage（V)
4 3 2 1 0
10
FL:White Fluorescent Light
Voc
100
1000
Illumination（Lx）
10000
100.0
Isc
Iope Vope=1.5V
10.0
Current（μA)
1.0 10
100
1000
Illumination（Lx）
10000
*、。
*The data are meant to show standard electric characteristics only , not intended to guarantee the characteristics.
