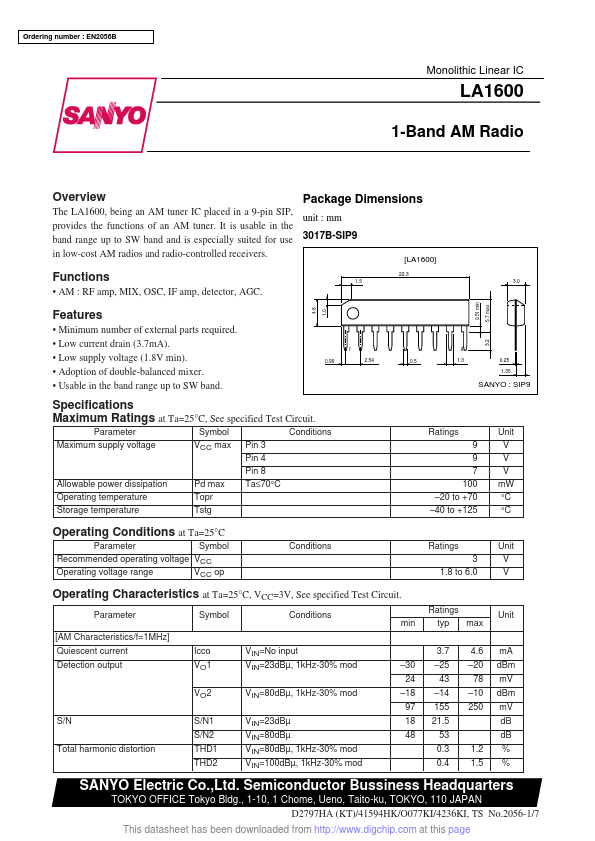

LA1600
LA1600 is 1-Band AM Radio manufactured by SANYO.
Ordering number : EN2056B
Monolithic Linear IC
1-Band AM Radio
Overview
The LA1600, being an AM tuner IC placed in a 9-pin SIP, provides the functions of an AM tuner. It is usable in the band range up to SW band and is especially suited for use in low-cost AM radios and radio-controlled receivers.
Package Dimensions unit : mm 3017B-SIP9
[LA1600]
Functions
- AM : RF amp, MIX, OSC, IF amp, detector, AGC.
5.7 max
0.51 min
4.8 1.0
Features
- Minimum number of external parts required.
- Low current drain (3.7mA).
- Low supply voltage (1.8V min).
- Adoption of double-balanced mixer.
- Usable in the band range up to SW band.
Specifications Maximum...
