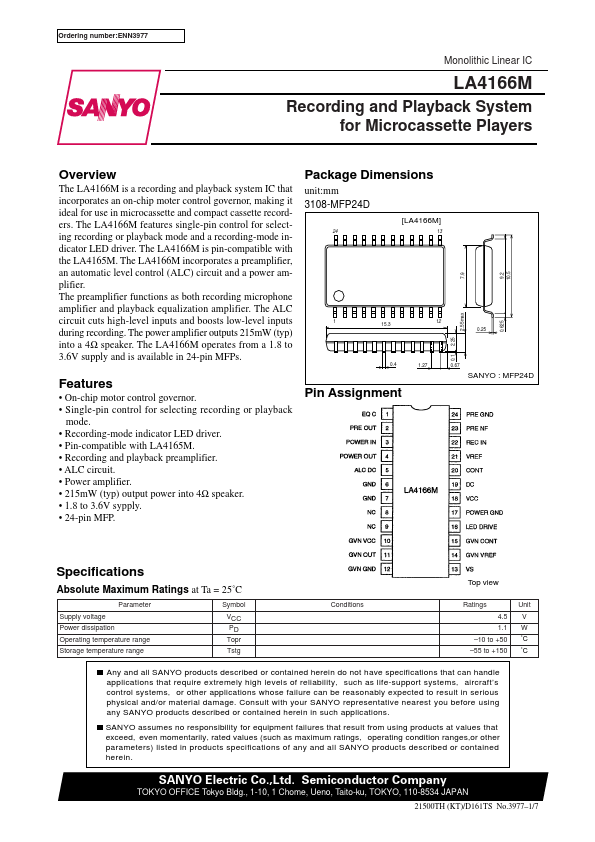

LA4166M
LA4166M is Recording and Playback System manufactured by SANYO.
Overview
The LA4166M is a recording and playback system IC that incorporates an on-chip moter control governor, making it ideal for use in microcassette and pact cassette recorders. The LA4166M features single-pin control for selecting recording or playback mode and a recording-mode indicator LED driver. The LA4166M is pin-patible with the LA4165M. The LA4166M incorporates a preamplifier, an automatic level control (ALC) circuit and a power amplifier. The preamplifier functions as both recording microphone amplifier and playback equalization amplifier. The ALC circuit cuts high-level inputs and boosts low-level inputs during recording. The power amplifier outputs 215m W (typ) into a 4Ω speaker. The LA4166M operates from a 1.8 to 3.6V supply and is available in 24-pin MFPs.
Features
- On-chip motor control governor.
- Single-pin control for selecting recording or playback mode.
- Recording-mode indicator LED driver.
- Pin-patible with LA4165M.
- Recording and playback preamplifier.
- ALC circuit.
- Power amplifier.
- 215m W (typ) output power into 4Ω speaker.
- 1.8 to 3.6V sypply.
- 24-pin MFP.
Package Dimensions unit:mm
3108-MFP24D
[LA4166M]
2.55max
0.1 2.25
Pin Assignment
SANYO : MFP24D

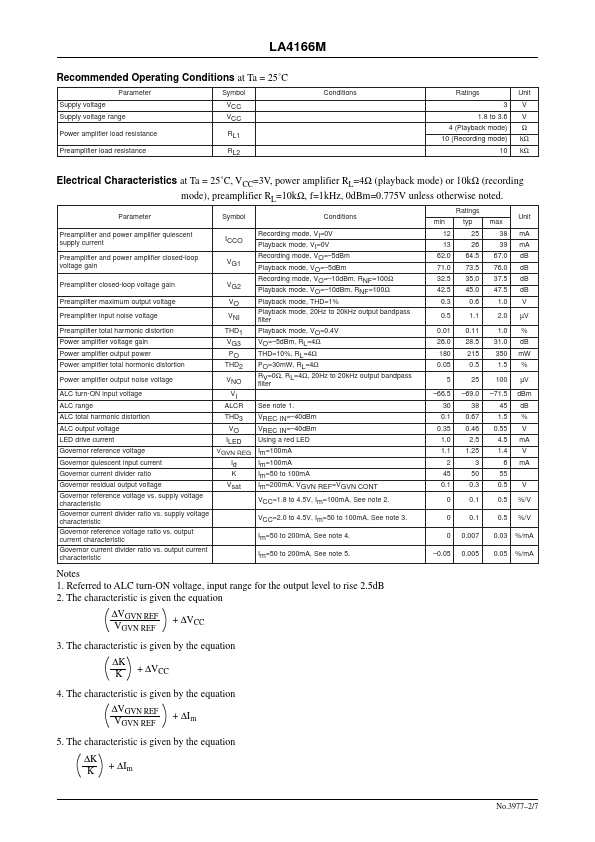

Specifications
Absolute Maximum Ratings at Ta = 25˚C
Parameter Supply voltage Power dissipation Operating temperature range Storage temperature range
Symbol
VCC PD Topr Tstg
Conditions
Top...
