LA7411 Description

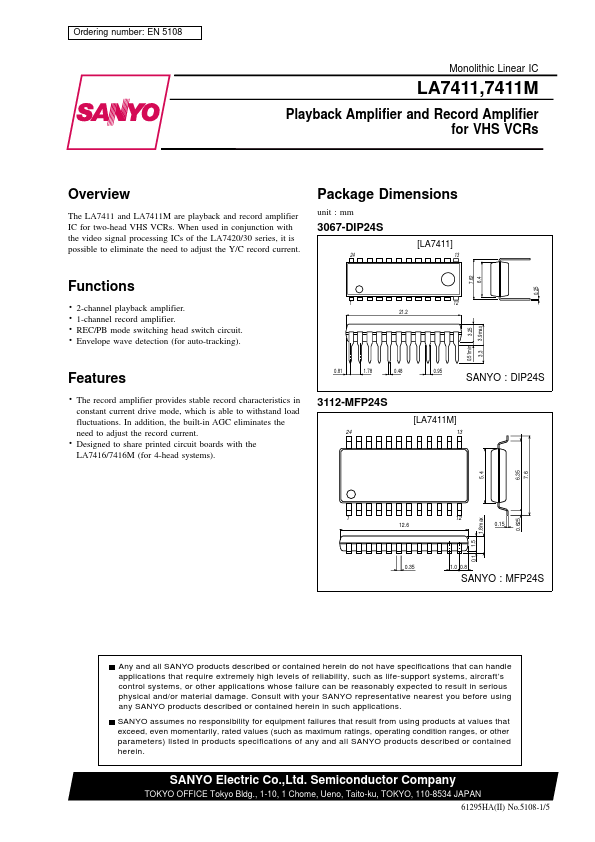

EN 5108 Monolithic Linear IC LA7411,7411M Playback Amplifier and Record Amplifier for VHS VCRs Overview The LA7411 and LA7411M are playback and record amplifier IC for two-head VHS VCRs. When used in conjunction with the video signal processing ICs of the LA7420/30 series, it is possible to eliminate the need to adjust the Y/C record current. Package Dimensions unit.
