STK301-090 Description

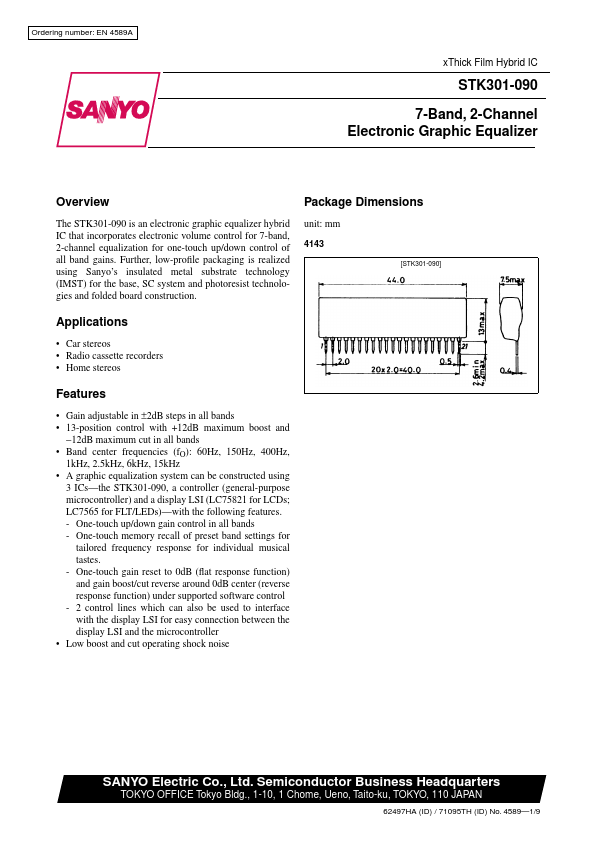

EN 4589A xThick Film Hybrid IC STK301-090 7-Band, 2-Channel Electronic Graphic Equalizer Overview Package Dimensions The STK301-090 is an electronic graphic equalizer hybrid IC that incorporates electronic volume control for 7-band, 2-channel equalization for one-touch up/down control of all band gains. Further, low-profile packaging is realized using Sanyo’s insulated metal substrate technology (IMST) for the base,...
STK301-090 Key Features
- Gain adjustable in ±2dB steps in all bands
- 13-position control with +12dB maximum boost and
- 12dB maximum cut in all bands
- Band center frequencies (fO): 60Hz, 150Hz, 400Hz
- A graphic equalization system can be constructed using
- One-touch up/down gain control in all bands
- One-touch gain reset to 0dB (flat response function) and gain boost/cut reverse around 0dB center (reverse response funct
- 2 control lines which can also be used to interface with the display LSI for easy connection between the display LSI and
- Low boost and cut operating shock noise

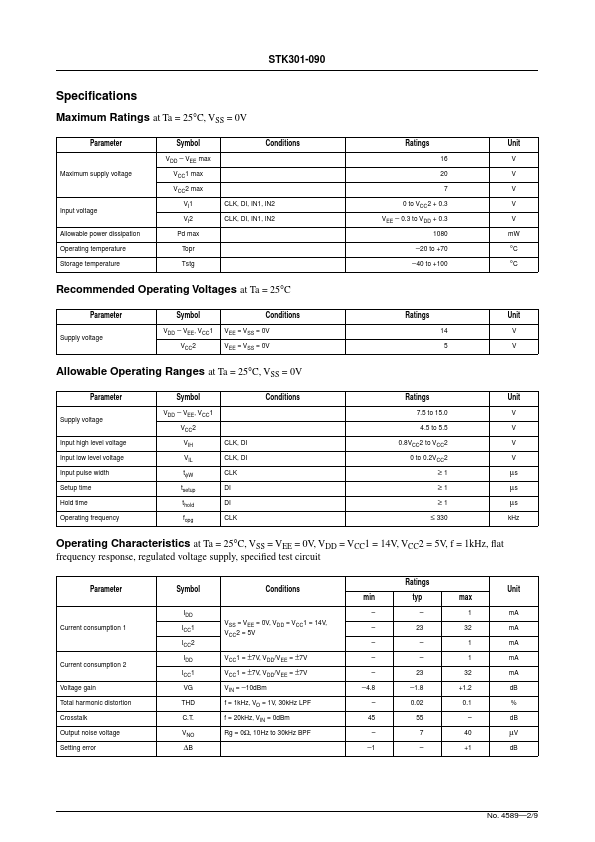

- VEE max
