AS6501 Description

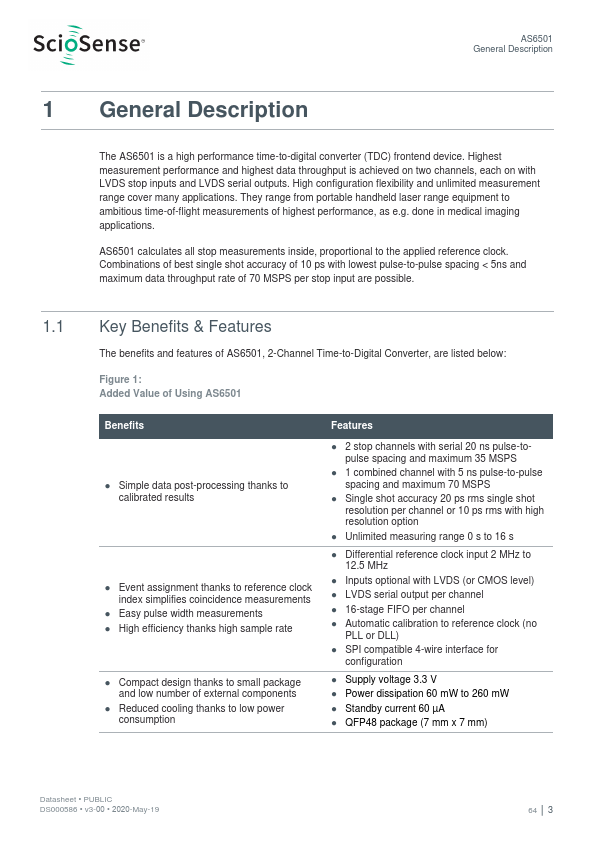

1 General Description The AS6501 is a high performance time-to-digital converter (TDC) frontend device. Highest measurement performance and highest data throughput is achieved on two channels, each on with LVDS stop inputs and LVDS serial outputs. High configuration flexibility and unlimited measurement range cover many applications.
AS6501 Key Features
- Simple data post-processing thanks to calibrated results
- Event assignment thanks to reference clock index simplifies coincidence measurements
- Easy pulse width measurements
- High efficiency thanks high sample rate
- pact design thanks to small package and low number of external ponents
- Reduced cooling thanks to low power consumption
- 2 stop channels with serial 20 ns pulse-topulse spacing and maximum 35 MSPS
- 1 bined channel with 5 ns pulse-to-pulse spacing and maximum 70 MSPS
- Single shot accuracy 20 ps rms single shot resolution per channel or 10 ps rms with high resolution option
- Unlimited measuring range 0 s to 16 s

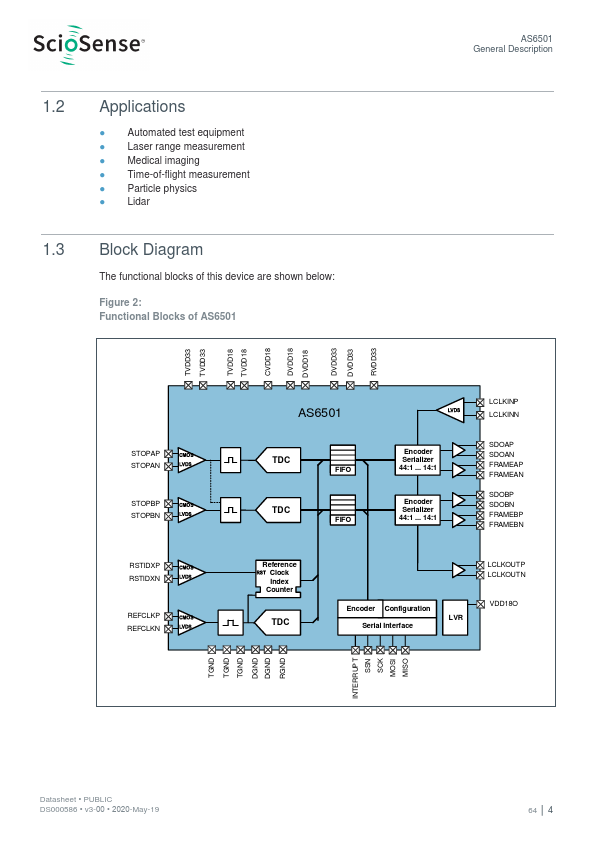

AS6501 Applications
- Simple data post-processing thanks to calibrated results
- Event assignment thanks to reference clock index simplifies coincidence measurements
