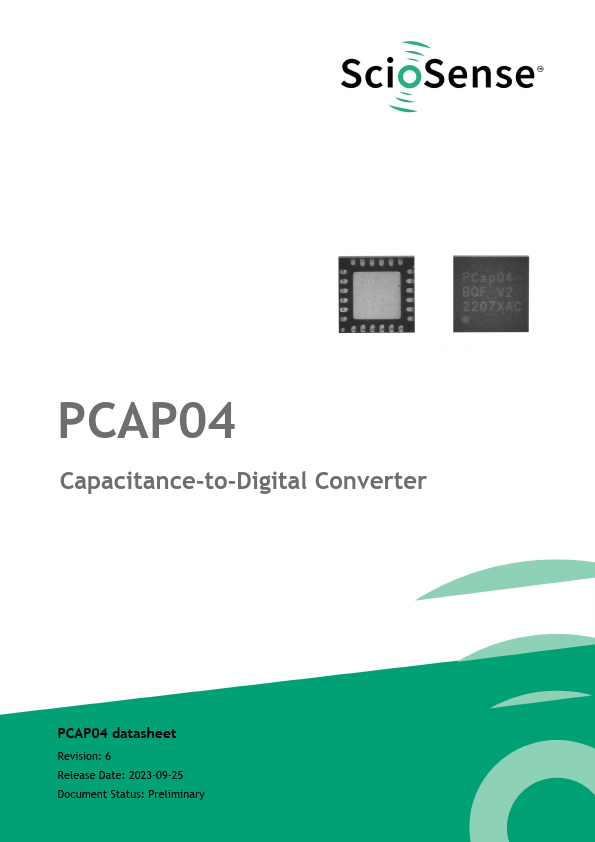

ScioSense PCAP04
PCap04 is a capacitance-to-digital converter (CDC) with integrated digital signal processor (DSP) for on-chip data post-processing. Its front end is based on ScioSense PICOCAP principle. This conversion principle offers outstanding flexibility with respect to power consumption, high resolution and speed.| Part No. | PCAP04 |
|---|---|
| Datasheet | PCAP04 Download |
| Manufacturer |  ScioSense |
| Description | Capacitance-to-Digital Converter |
| Buy | Stock & Price |
FEATURES & BENEFITS
● Up to 6 capacitors grounded, 3 capacitors floating● Capacitance range 1pF to 100nF
● Internal reference 1pF to 31pF
● Integrated guard driver
● Up to 8aF at 2.5Hz and 10pF base capacitance
● Up to 50kHz sample rate
● Up to 20-bit resolution
● 32-bit DSP
● 3k ROM code, 1k NVRAM
● 96 x 32 bit RAM
● SPI / IIC interface
● PDM / PWM outputs, GPIO
● Supply voltage 2.1/3.0V to 3.6V
● Operating current down to 3μA
● PCap04-Bxxx -40°C to 85°C
● PCap04-Axxx -40°C to 125°C
● QFN24 or die (1.588mm x 1.46mm)VDD: 1.71 to 1.98V
APPLICATIONS
● Building● Position sensors
● Pressure sensors
● Force sensors
● Proximity sensor
● Acceleration sensors
● Inclination sensors
● Humidity sensors
● Dewpoint sensors
● Tilt sensors
● Angle sensors
● Wireless applications
● Level sensors

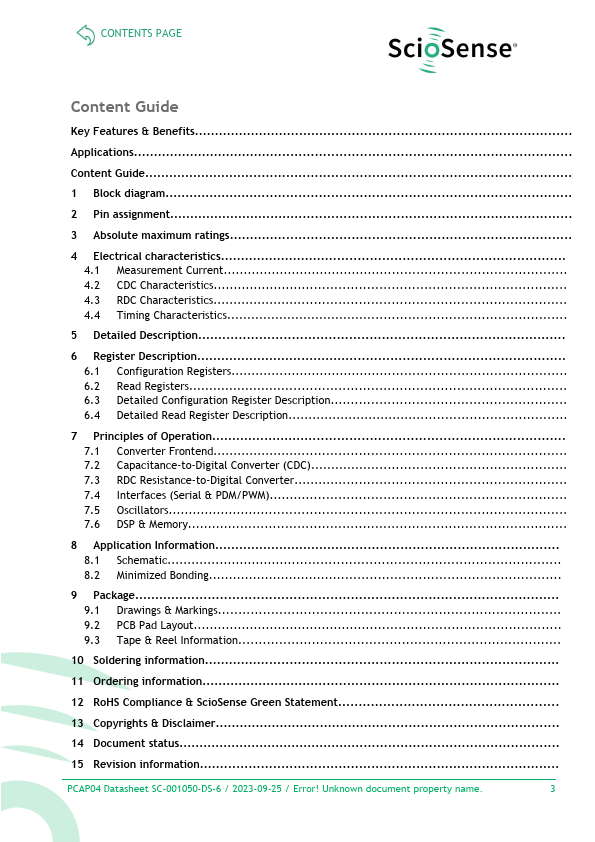

● IoT devices 2 PCAP04 Datasheet SC-001050-DS-6 / 2023-09-25 CONTENTS PAGE Content Guide Key
