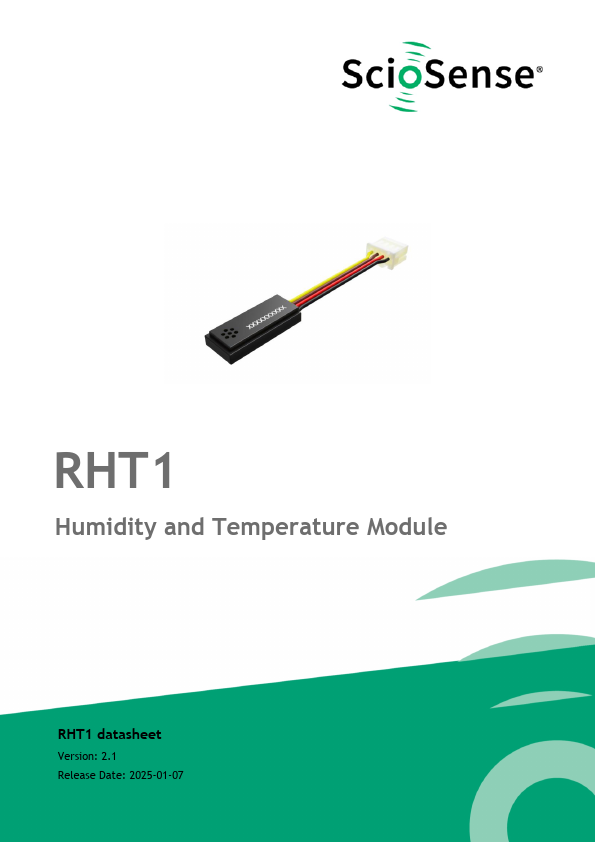

RHT1 - Humidity and Temperature Module

Description

4 3 2 1 Table 1: Pin description Pin Pin Name Color 1 GND Black 2 VDD Red 3 VT Brown 4 VRH Yellow Pin Type Supply Supply Output Output Description Ground supply voltage Power voltage Temperature output Relative humidity output 4 Datasheet RHT1 SC-002292-DS-7 / 2024-09-30 CONTENTS

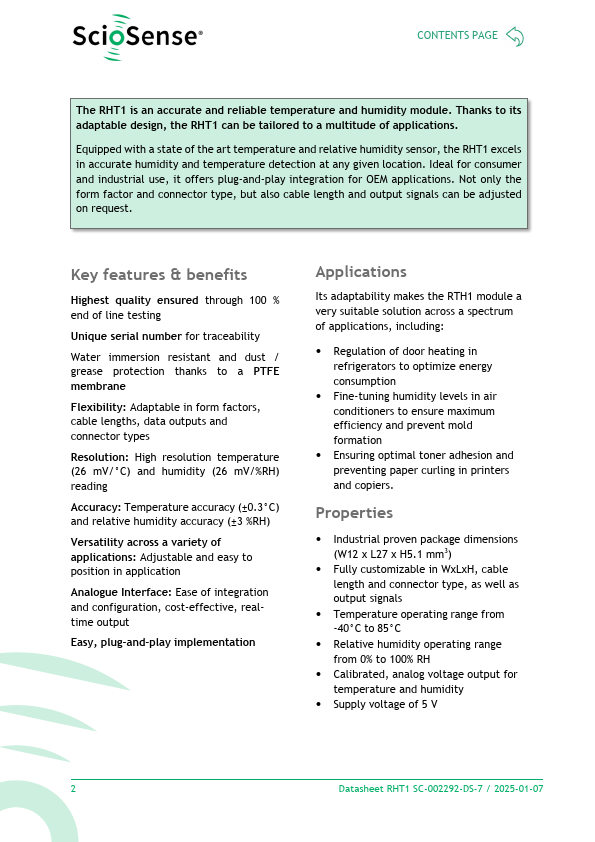

Features

  • & benefits Highest quality ensured through 100 % end of line testing Unique serial number for traceability Water immersion resistant and dust / grease protection thanks to a PTFE membrane Flexibility: Adaptable in form factors, cable lengths, data outputs and connector types Resolution: High resolution temperature (26 mV/°C) and humidity (26 mV/%RH) reading Accuracy: Temperature accuracy (±0.3°C) and relative humidity accuracy (±3 %RH) Versatility across a variety of.

📥 Download Datasheet

Datasheet Details

Part number RHT1
Manufacturer ScioSense
File Size 520.50 KB
Description Humidity and Temperature Module
Datasheet download datasheet RHT1 Datasheet

📁 Similar Datasheet

  • RHT1A221MDN1CG - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A221MDN1KX - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A221MDN1PH - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A221MDN1PX - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A331MDN1CG - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A331MDN1KX - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A331MDN1PH - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A331MDN1PX - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A391MDN1CG - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
  • RHT1A391MDN1KX - Functional Polymer Aluminum Solid Electrolytic Capacitors (Nichicon)
Other Datasheets by ScioSense

    Full PDF Text Transcription

    Click to expand full text
    RHT1 Humidity and Temperature Module RHT1 datasheet Version: 2.0 Release Date: 2024-09-30 CONTENTS PAGE The RHT1 is an accurate and reliable temperature and humidity module. Thanks to its adaptable design, the RHT1 can be tailored to a multitude of applications. Equipped with a state of the art temperature and relative humidity sensor, the RHT1 excels in accurate humidity and temperature detection at any given location. Ideal for consumer and industrial use, it offers plug-and-play integration for OEM applications. Not only the form factor and connector type, but also cable length and output signals can be adjusted on request.
