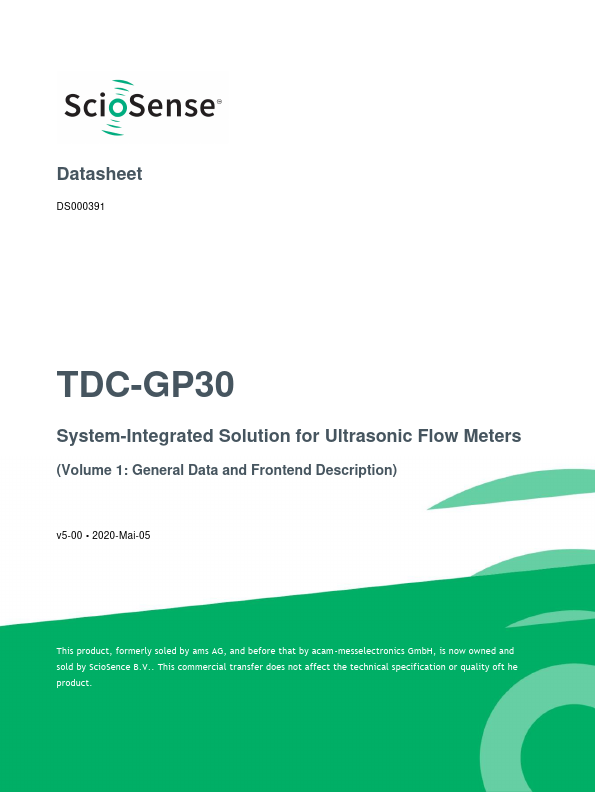

TDC-GP30
Description
) v5-00
- 2020-Mai-05
This product, formerly soled by ams AG, and before that by acam-messelectronics Gmb H, is now owned and sold by Scio Sence B.V.. This mercial transfer does not affect the technical specification or quality oft he product.
TDC-GP30 Vol. 1

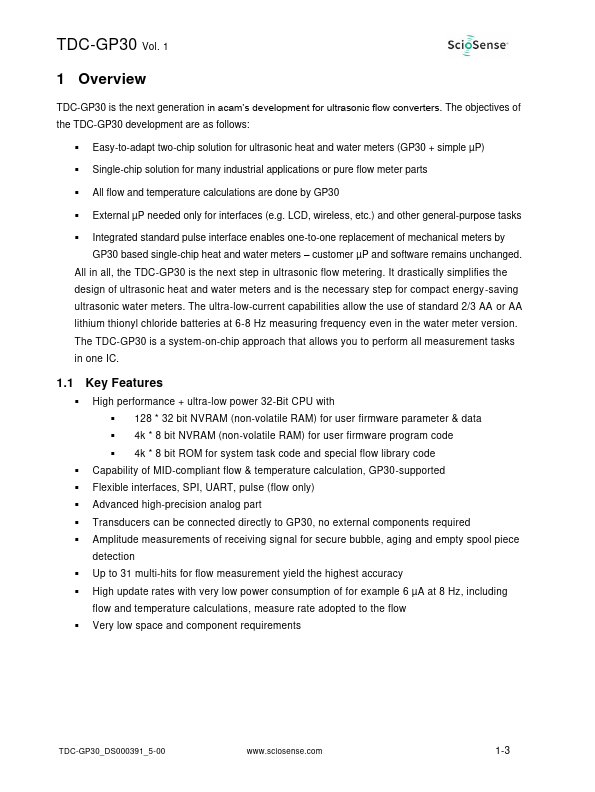

1 Overview
TDC-GP30 is the next generation in acam’s development for ultrasonic flow converters. The objectives of the TDC-GP30 development are as follows:
- Easy-to-adapt two-chip solution for ultrasonic heat and water meters (GP30 + simple µP)
- Single-chip solution for many industrial applications or pure flow meter parts
- All flow and temperature calculations are done by GP30
- External µP needed only for interfaces (e.g. LCD, wireless, etc.) and other general-purpose tasks
- Integrated standard pulse interface enables one-to-one replacement of mechanical meters by GP30 based single-chip heat and water meters
- customer µP and software remains unchanged.
All in all, the TDC-GP30 is the next step in ultrasonic flow...
