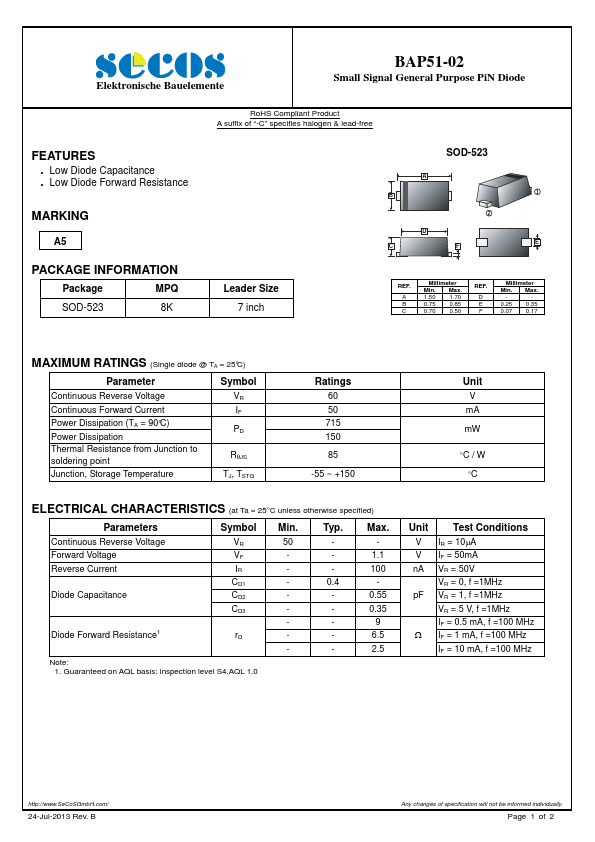

BAP51-02
FEATURES
Low Diode Capacitance Low Diode Forward Resistance
MARKING
A5
PACKAGE INFORMATION
Package
SOD-523
8K
Leader Size 7 inch
SOD-523
REF.
Millimeter Min. Max. 1.50 1.70 0.75 0.85 0.70 0.50
REF.
Millimeter
Min. Max.
- -
0.25 0.35
0.07 0.17
MAXIMUM RATINGS (Single diode @ TA = 25°C)
Parameter
Symbol
Continuous Reverse Voltage Continuous Forward Current Power Dissipation (TA = 90°C) Power Dissipation Thermal Resistance from Junction to soldering point Junction, Storage Temperature
VR IF PD
RθJS TJ, TSTG
Ratings 60 50 715 150
-55 ~ +150
Unit V m A m W
°C / W °C
ELECTRICAL CHARACTERISTICS (at Ta = 25°C unless otherwise specified)
Parameters Continuous Reverse Voltage Forward Voltage Reverse Current
Diode Capacitance
Diode Forward Resistance1
Symbol VR VF IR CD1 CD2 CD3 r D
Note: 1. Guaranteed on AQL basis: inspection level S4,AQL 1.0
Min....
