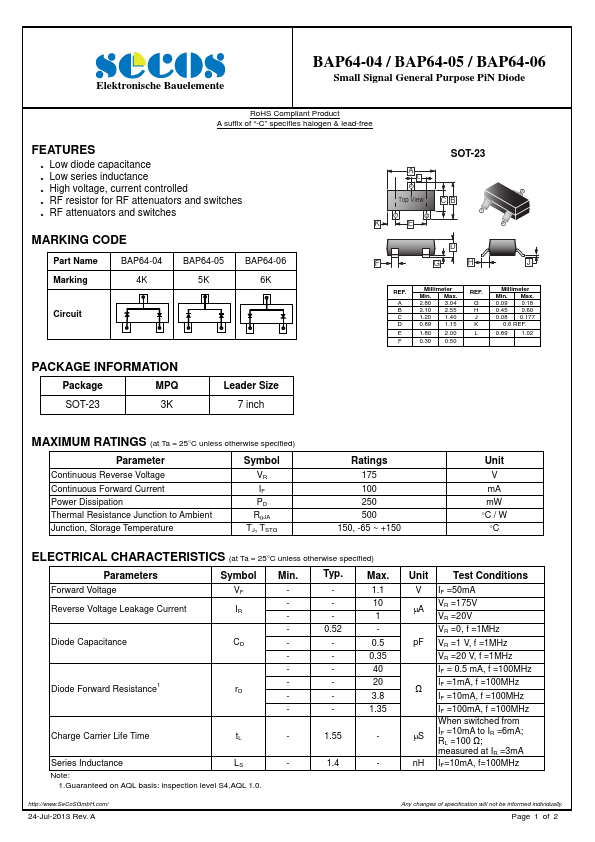

Elektronische Bauelemente BAP64-04 / BAP64-05 / BAP64-06 Small Signal General Purpose PiN Diode RoHS pliant Product A suffix of “-C” specifies halogen & lead-free Features Low diode capacitance Low series inductance High voltage, current controlled RF resistor for RF attenuators and switches RF attenuators and switches MARKING CODE Part Name Marking BAP64-04 4K BAP64-05 5K BAP64-06 6K Circuit  PACKAGE INFORMATION  Package SOT-23 3K  Leader Size 7 inch SOT-23 Top View 1 2 REF. A B C D E F Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.89 1.15 1.80 2.00 0.30 0.50 REF. G H J K L Millimeter Min. Max. 0.09 0.18 0.45...
