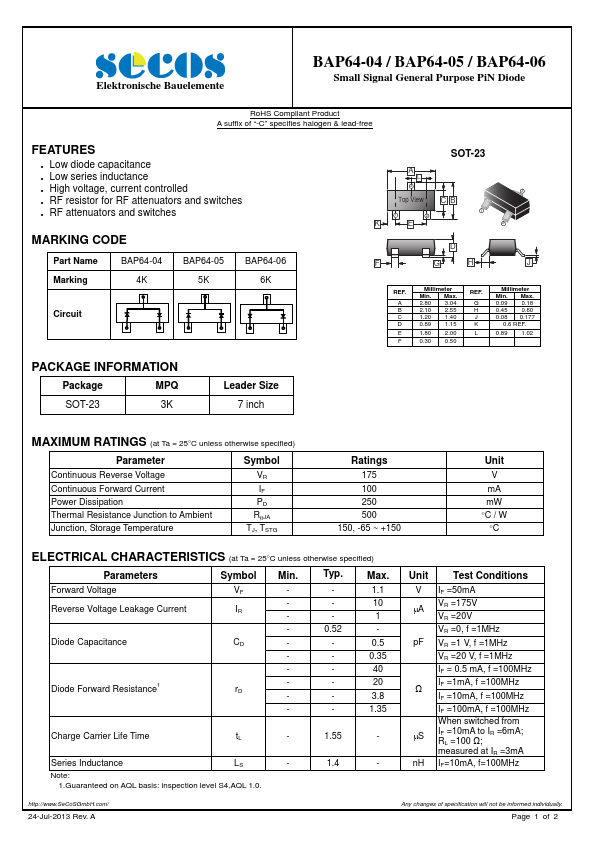

SeCoS Halbleitertechnologie GmbH BAP64-06
Small Signal General Purpose PiN Diode
| Part No. | BAP64-06 |
|---|---|
| Datasheet | BAP64-06 Download |
| Manufacturer |  SeCoS Halbleitertechnologie GmbH |
| Description | Small Signal General Purpose PiN Diode |
| Buy | Stock & Price |
FEATURES
Low diode capacitance Low series inductance High voltage, current controlled RF resistor for RF attenuators and switches RF attenuators and switches MARKING CODE Part Name Marking BAP64-04 4K BAP64-05 5K BAP64-06 6K Circuit PACKAGE INFORMATION Package MPQ SOT-23 3K Leader Size 7 inch SOT-23 A L 3 Top View CB 1 2 K E 3 1 2 D F G H J REF. A B C D E F Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.89 1.15 1.80 2.00 0.30 0.50 REF. G H J K L Millimeter Min. Max. 0.09 0.18 0.45 0.60 0.08 0.177 0.6 REF. 0.89 1.02MAXIMUM RATINGS
(at Ta = 25°C unless otherwise specified) Parameter Continuous Reverse Voltage Continuous Forward Current Power Dissipation Thermal Resistance Junction to Ambient Junction, Storage Temperature Symbol VR IF PD RθJA TJ, TSTG Ratings 175 100 250 500 150, -65 ~ +150 Unit V mA mW °C / W °CELECTRICAL CHARACTERISTICS

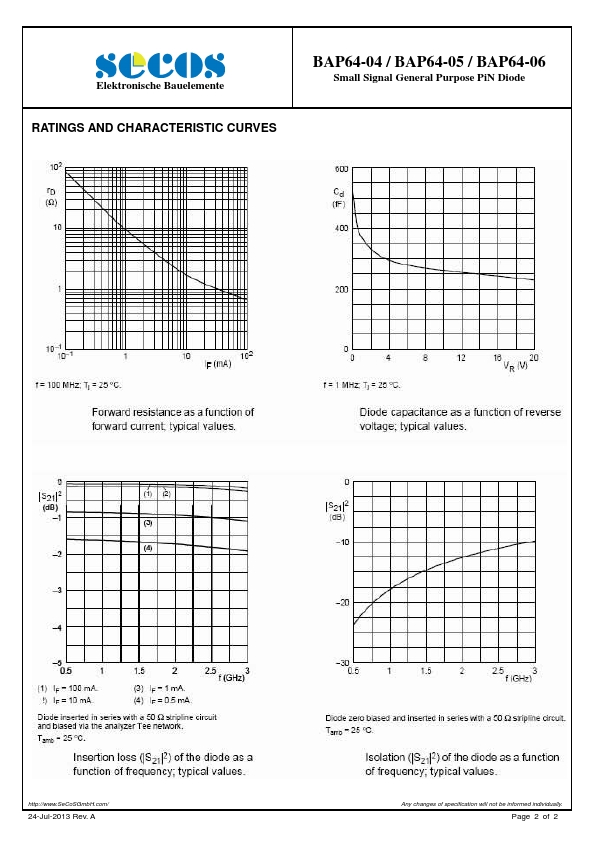

(at Ta = 25°C unless otherwise specified) Parameters Symbol Min. Typ. Max. Forward Voltage Reverse Voltage Leakage Current Diode Capacitan...
