DTC143ECA Datasheet | SeCoS Halbleitertechnologie GmbH

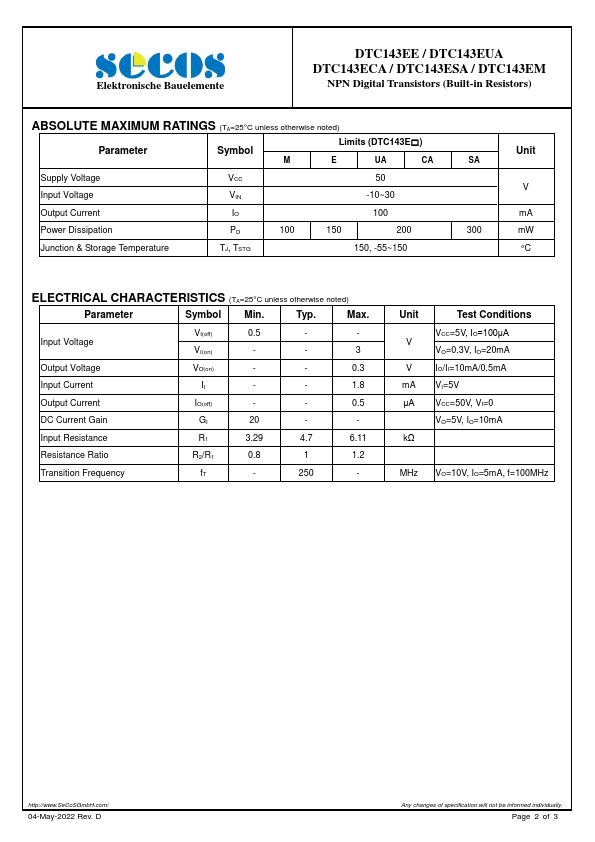

FEATURES - Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). - The bias resistors consist of thin-film resistors with plete isolation to allow positive biasing of the input. They also have the advantage of almost pletely eliminating parasitic effects. - Only the on/off conditions need to be set for operation, making device design easy. EQUIVALENT CIRCUIT ORDER INFORMATION Part Number Type DTC143E Series Lead (Pb)-free DTC143E Series-C Lead (Pb)-free and Halogen-free PIN CONNENCTIONS AND MARKING DTC143EM 1. IN 2. GND 3. OUT SOT-723 MARKING:23 DTC143EUA 1. IN 2. GND 3. OUT SOT-323 MARKING:23 DTC143ESA 1. IN 2. GND 3. OUT DTC143EE 1. IN 2. GND 3. OUT SOT-523 MARKING:23 DTC143ECA 1. IN 2. GND 3. OUT SOT-23 MARKING:23 TO-92S C143 MARKING: E http://.Se Co SGmb H./ 04-May-2022 Rev. D = Production Line Indication Any changes of specification will not be informed individually. Page 1 of 3 Elektronische Bauelemente DTC143EE / DTC143EUA DTC143ECA / DTC143ESA / DTC143EM NPN Digital Transistors (Built-in Resistors) ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise noted) Parameter Symbol Limits (DTC143E-...
