DTC143EE - NPN Digital Transistors

This page provides the datasheet information for the DTC143EE, a member of the DTC143EM NPN Digital Transistors family.

Product Overview

SeCoS

📥 Download Datasheet

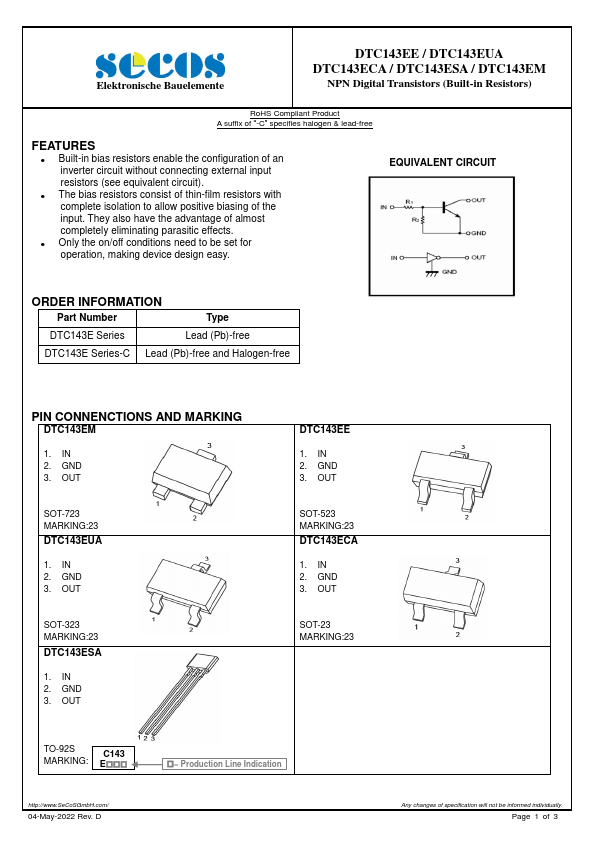

DTC143EE NPN Digital Transistors by SeCoS - Datasheet Preview — Datasheet preview – DTC143EE

Datasheet Details

Part number	DTC143EE
Manufacturer	SeCoS
File Size	140.60 KB
Description	NPN Digital Transistors
Datasheet	DTC143EE Datasheet

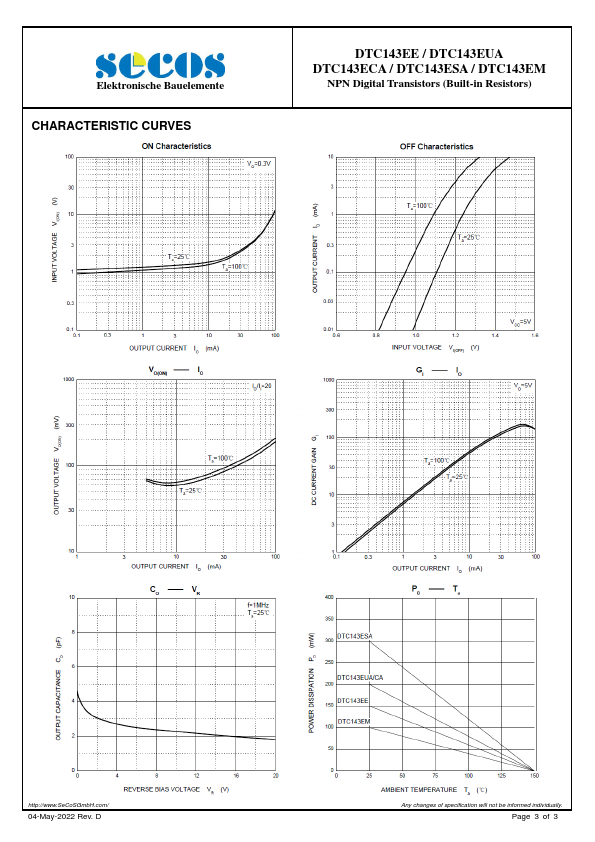

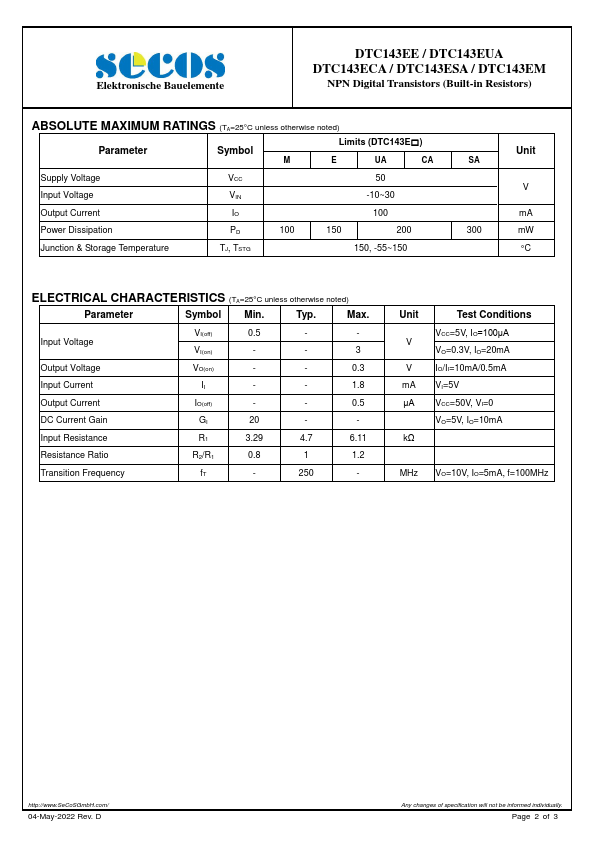

Additional preview pages of the DTC143EE datasheet.

DTC143EE Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy.
