DTC143EM Datasheet NPN Digital Transistors

Manufacturer: SeCoS Halbleitertechnologie GmbH

Overview: Elektronische Bauelemente DTC143EE / DTC143EUA DTC143ECA / DTC143ESA / DTC143EM NPN Digital Transistors (Built-in Resistors) RoHS pliant Product A suffix of “-C” specifies halogen &.

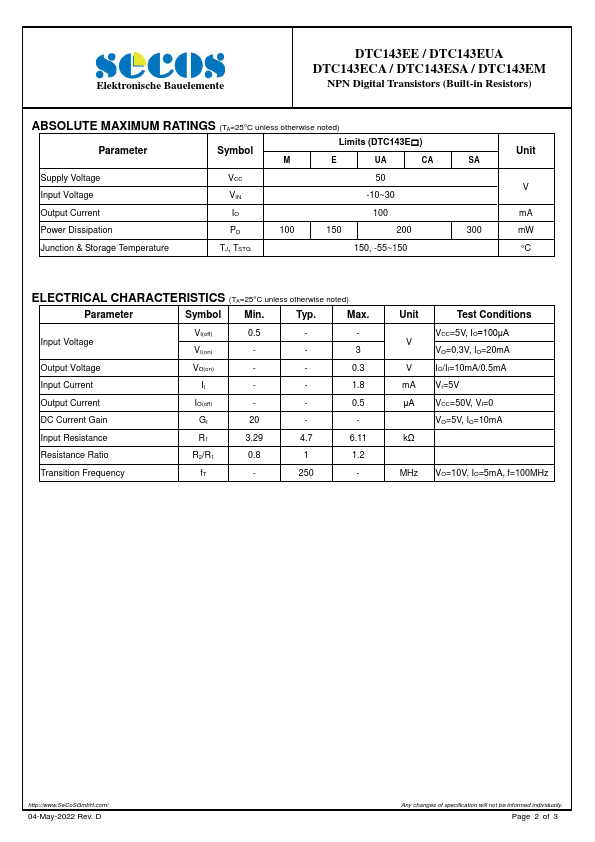

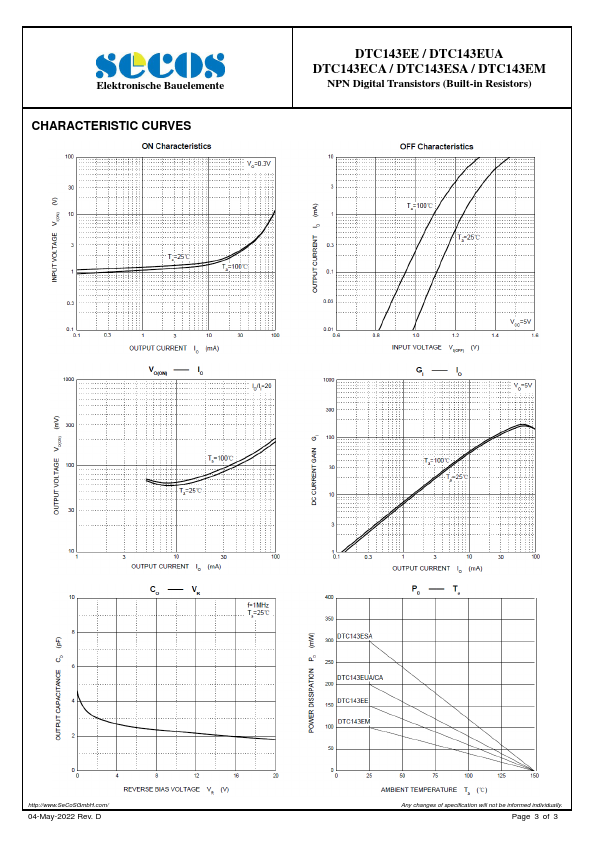

DTC143EM datasheet preview

Datasheet Details

Part number	DTC143EM
Manufacturer	SeCoS Halbleitertechnologie GmbH
File Size	327.91 KB
Description	NPN Digital Transistors
Datasheet	DTC143EM-SeCoS.pdf

Key Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
