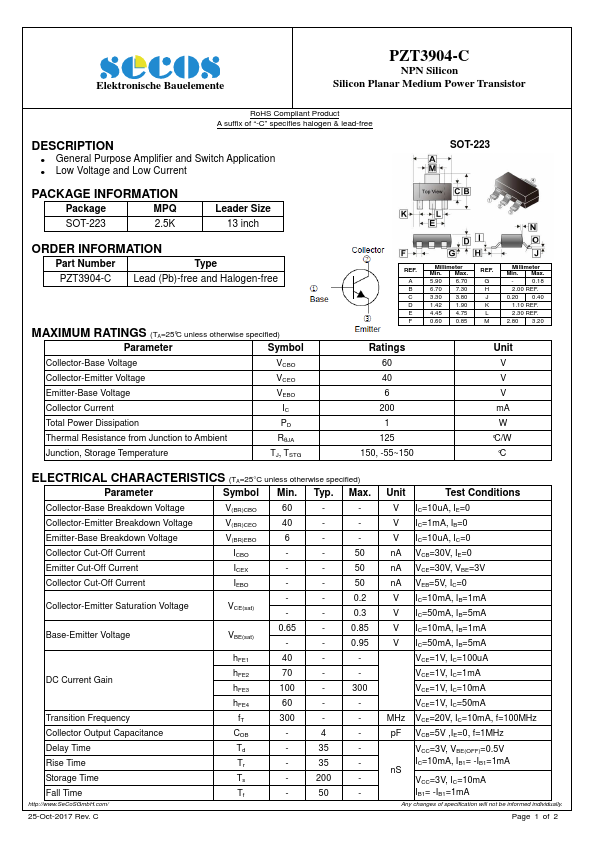

SeCoS Halbleitertechnologie GmbH PZT3904-C
NPN Silicon Planar Medium Power Transistor
| Part No. | PZT3904-C |
|---|---|
| Datasheet | PZT3904-C Download |
| Manufacturer |  SeCoS Halbleitertechnologie GmbH |
| Description | NPN Silicon Planar Medium Power Transistor |
| Buy | Stock & Price |
DESCRIPTION
General Purpose Amplifier and Switch Application Low Voltage and Low Current PACKAGE INFORMATION Package MPQ SOT-223 2.5K Leader Size 13 inch SOT-223 ORDER INFORMATION Part Number Type PZT3904-C Lead (Pb)-free and Halogen-freeMAXIMUM RATINGS
(TA=25°C unless otherwise specified) Parameter Symbol Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage Collector Current VEBO IC Total Power Dissipation PD Thermal Resistance from Junction to Ambient Junction, Storage Temperature RθJA TJ, TSTG REF. A B C D E F Millimeter Min. Max. 5.90 6.70 6.70 7.30 3.30 3.80 1.42 1.90 4.45 4.75 0.60 0.85 REF. G H J K L M Millimeter Min. Max. - 0.18 2.00 REF. 0.20 0.40 1.10 REF. 2.30 REF. 2.80 3.20 Ratings 60 40 6 200 1 125 150, -55~150 Unit V V V mA W °C/W °CELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise specified) Parameter Symbol Min. Typ. Max. Collector-Base Breakdown Voltage V(BR)CBO 60 - - Collector-Emitter Breakdown Voltage V(BR)CEO 40 - - Emitter-Base Brea...
