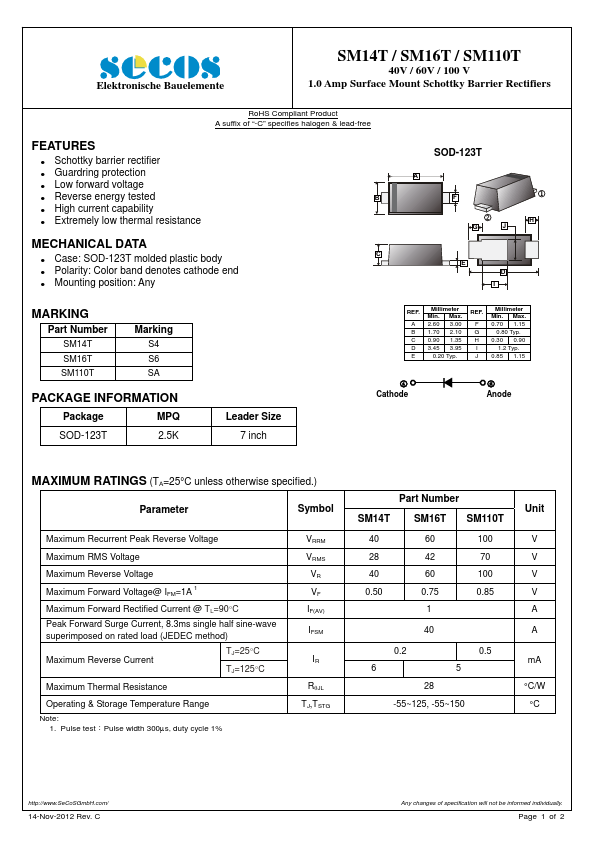

SM110T Overview
Elektronische Bauelemente SM14T / SM16T / SM110T 40V / 60V / 100 V 1.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS pliant Product A suffix of “-C” specifies halogen & lead-free.
SM110T Key Features
- Schottky barrier rectifier
- Guardring protection
- Low forward voltage
- Reverse energy tested
- High current capability
- Extremely low thermal resistance
- Case: SOD-123T molded plastic body
- Polarity: Color band denotes cathode end
- Mounting position: Any
- 55~125, -55~150
