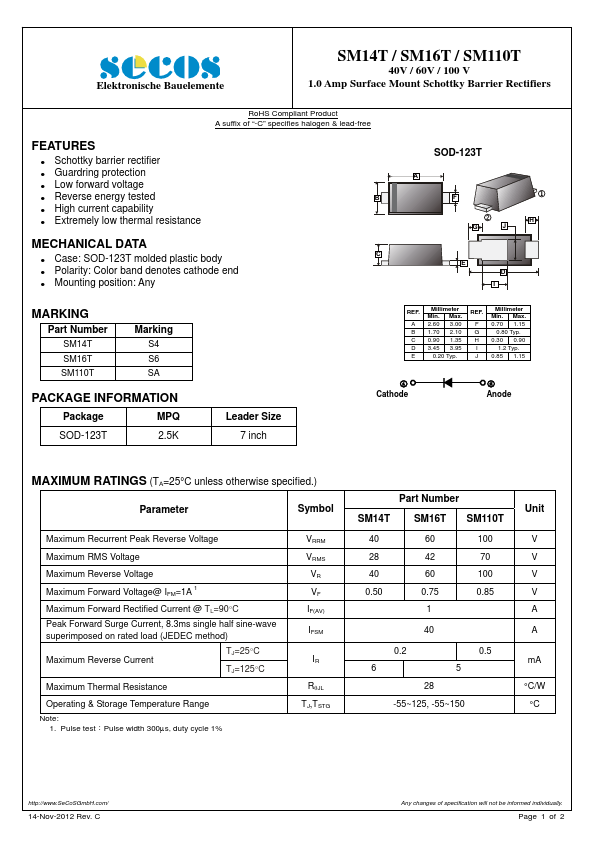

SM14T
FEATURES
- Schottky barrier rectifier
- Guardring protection
- Low forward voltage
- Reverse energy tested
- High current capability
- Extremely low thermal resistance
MECHANICAL DATA
- Case: SOD-123T molded plastic body
- Polarity: Color band denotes cathode end
- Mounting position: Any
SOD-123T
MARKING
Part Number
SM14T SM16T SM110T
Marking
S4 S6 SA
PACKAGE INFORMATION
Package
SOD-123T
2.5K
Leader Size 7 inch
REF.
A B C D E
Millimeter Min. Max. 2.60 3.00 1.70 2.10 0.90 1.35 3.45 3.95
0.20 Typ.
REF.
F G H I J
Millimeter Min. Max. 0.70 1.15
0.80 Typ. 0.30 0.90
1.2 Typ. 0.85 1.15
Cathode
Anode
MAXIMUM RATINGS (TA=25°C unless otherwise...
