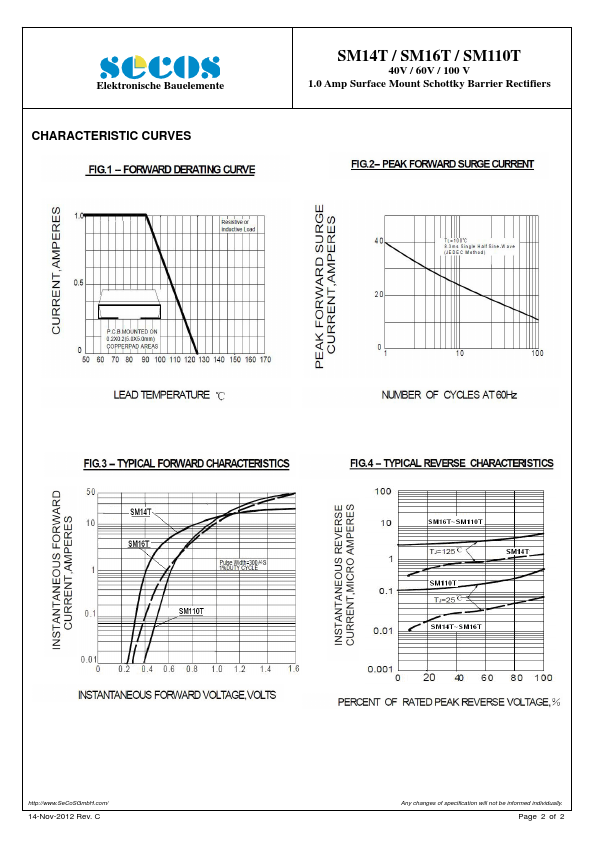

SM16T page 2
Page 2

SM16T Key Features

  • Schottky barrier rectifier
  • Guardring protection
  • Low forward voltage
  • Reverse energy tested
  • High current capability
  • Extremely low thermal resistance
  • Case: SOD-123T molded plastic body
  • Polarity: Color band denotes cathode end
  • Mounting position: Any
  • 55~125, -55~150

Other SM16T Datasheets

Manufacturer Part Number Description
MIC Logo MIC SM16 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Westcode Semiconductors Logo Westcode Semiconductors SM16-28CXC144 Soft Recovery Diodes
GW
GW		 SM160 1.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Formosa MS Logo Formosa MS SM160 Silicon epitaxial planer type
Rectron Semiconductor Logo Rectron SM160 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SM16T Description

Elektronische Bauelemente SM14T / SM16T / SM110T 40V / 60V / 100 V 1.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS pliant Product A suffix of “-C” specifies halogen & lead-free.
