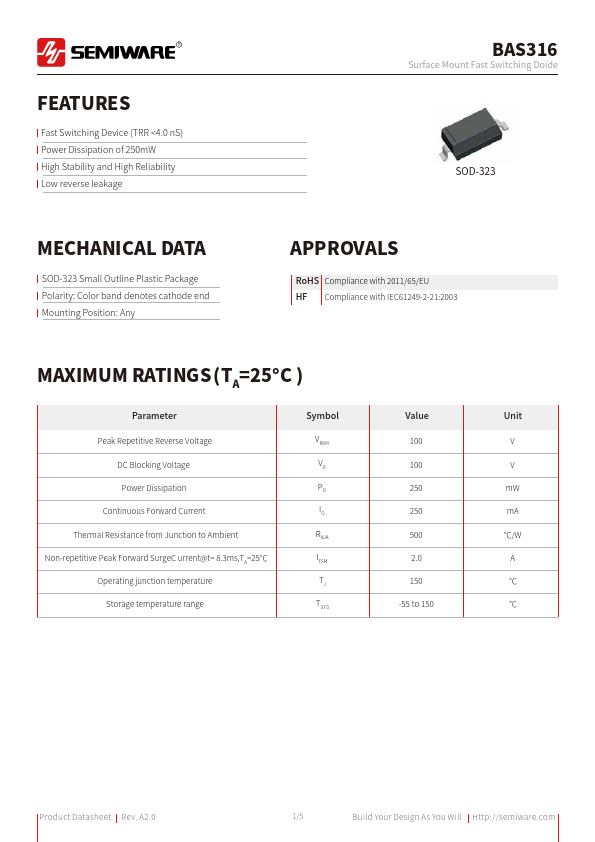

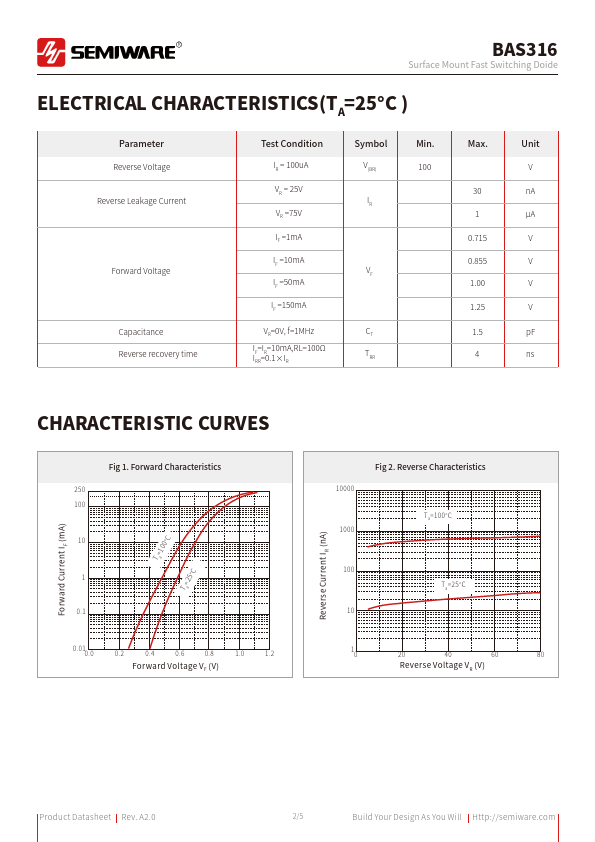

FEATURES Fast Switching Device (TRR <4.0 n S) Power Dissipation of 250m W High Stability and High Reliability Low reverse leakage Surface Mount Fast Switching Doide SOD-323 MECHANICAL DATA SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Peak Repetitive Reverse Voltage DC Blocking Voltage Power Dissipation Continuous Forward Current Thermal Resistance from Junction to Ambient Non-repetitive Peak Forward Surge C urrent@t= 8.3ms,TA=25℃ Operating junction temperature Storage temperature range Symbol VRRM VR PD IO RθJA IFSM TJ TSTG Value 100 100 250 250 500 2.0 150 -55 to 150 Unit V V m W m A ℃/W A ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Reverse Voltage Reverse Leakage Current Forward Voltage Capacitance Reverse recovery time Test Condition IR = 100u A VR = 25V VR =75V IF =1m A IF =10m A IF =50m A IF =150m A VR=0V, f=1MHz IF=IR=10m A,RL=100Ω IRR=0.1×IR Symbol V(BR) IR CT TRR Min. 100 Max. 30 1 0.715 0.855 1.00 1.25 1.5 4 Unit V n A μA V V V V p F ns CHARACTERISTIC CURVES Forward Current IF (m A) Fig 1. Forward Characteristics 250...
