BAT60B
BAT60B is Schottky Barrier Rectifier manufactured by Semiware Semiconductor.

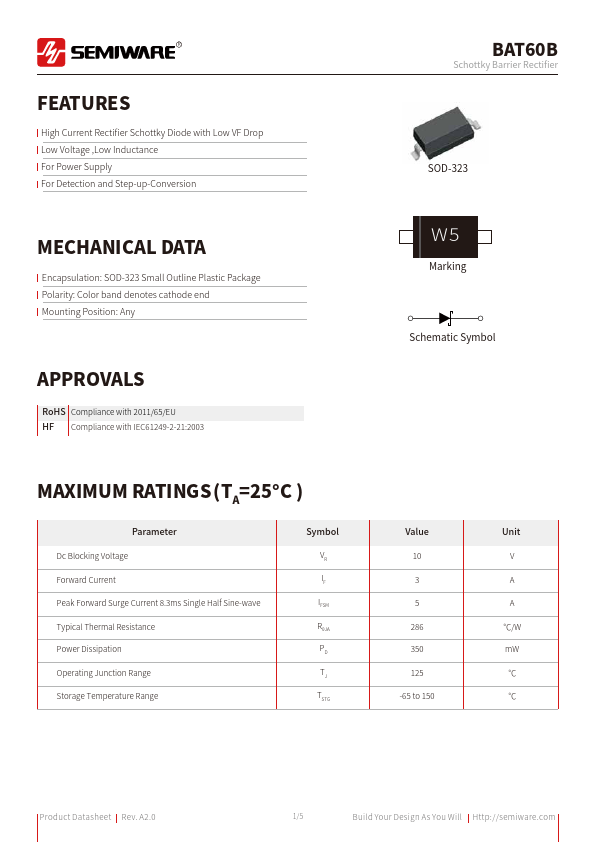

Features
High Current Rectifier Schottky Diode with Low VF Drop Low Voltage ,Low Inductance For Power Supply For Detection and Step-up-Conversion
MECHANICAL DATA
Encapsulation: SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any
APPROVALS
RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Dc Blocking Voltage Forward Current Peak Forward Surge Current 8.3ms Single Half Sine-wave Typical Thermal Resistance Power Dissipation Operating Junction Range Storage Temperature Range
Symbol VR IF IFSM RθJA PD TJ TSTG
Schottky Barrier Rectifier
SOD-323
W5
Marking
Schematic Symbol
Value...
