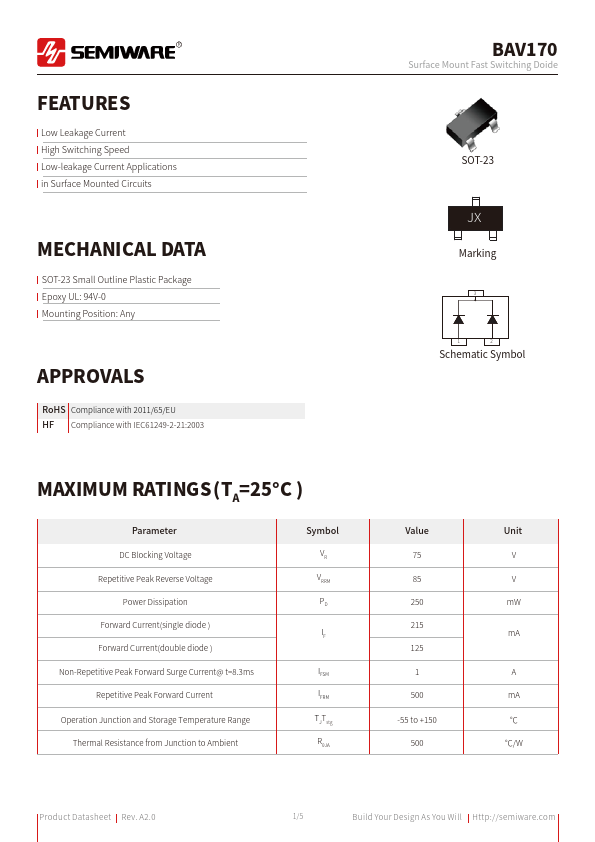

BAV170
FEATURES
Low Leakage Current High Switching Speed Low-leakage Current Applications in Surface Mounted Circuits
MECHANICAL DATA
SOT-23 Small Outline Plastic Package Epoxy UL: 94V-0 Mounting Position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter DC Blocking Voltage Repetitive Peak Reverse Voltage Power Dissipation Forward Current(single diode ) Forward Current(double diode ) Non-Repetitive Peak Forward Surge Current@ t=8.3ms Repetitive Peak Forward Current Operation Junction and Storage Temperature Range Thermal Resistance from Junction to Ambient
Symbol VR VRRM PD
IFSM IFRM TJTstg RθJA
Surface Mount Fast Switching Doide
SOT-23
Marking
Schematic Symbol
Value 75 85 250 215 125 1 500
-55 to +150 500
Unit V V m W m A
A m A ℃ ℃/W
Product Datasheet Rev. A2.0
1/5
Build Your Design As You Will Http://semiware.
Surface Mount Fast Switching Doide

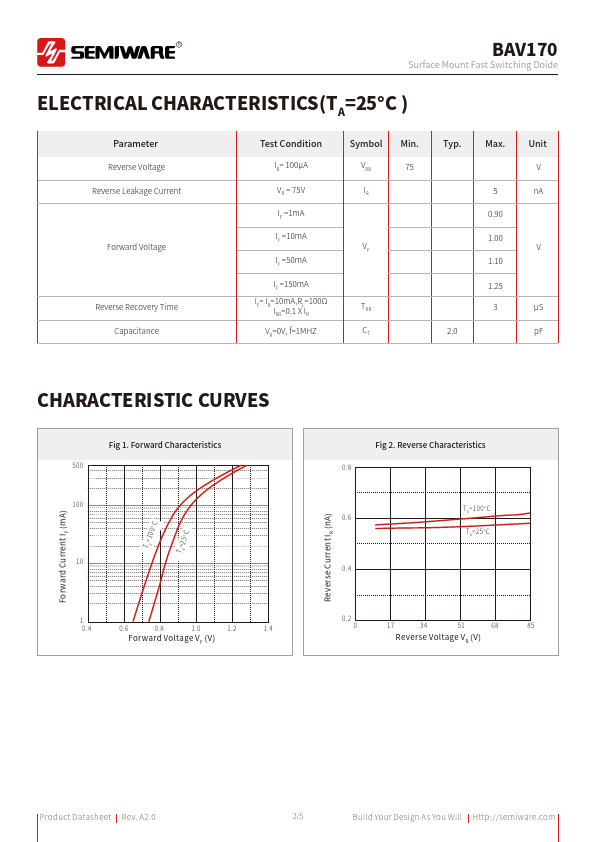

ELECTRICAL CHARACTERISTICS(TA=25°C...
