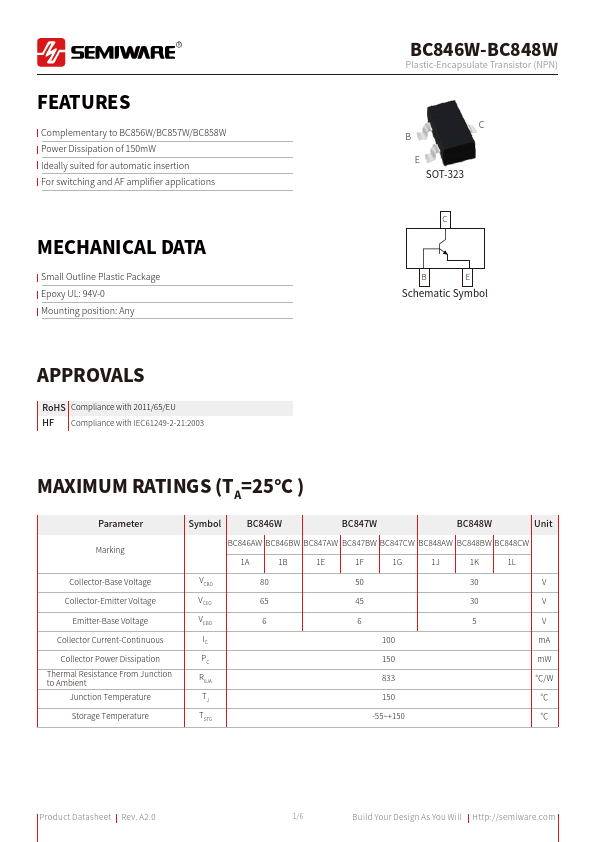

BC846BW
FEATURES plementary to BC856W/BC857W/BC858W Power Dissipation of 150m W Ideally suited for automatic insertion For switching and AF amplifier applications
MECHANICAL DATA
Small Outline Plastic Package Epoxy UL: 94V-0 Mounting position: Any
BC846W-BC848W
Plastic-Encapsulate Transistor (NPN)
E SOT-323
Schematic Symbol
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter
Marking
Collector-Base Voltage Collector-Emitter Voltage
Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation Thermal Resistance From Junction to Ambient
Junction Temperature Storage Temperature
Symbol
BC846W
BC847W
BC848W
Unit
BC846AW BC846BW BC847AW BC847BW BC847CW BC848AW BC848BW BC848CW
1A
1B
1E
1F
1G
1J
1K
1L
VCBO
VCEO
VEBO...
