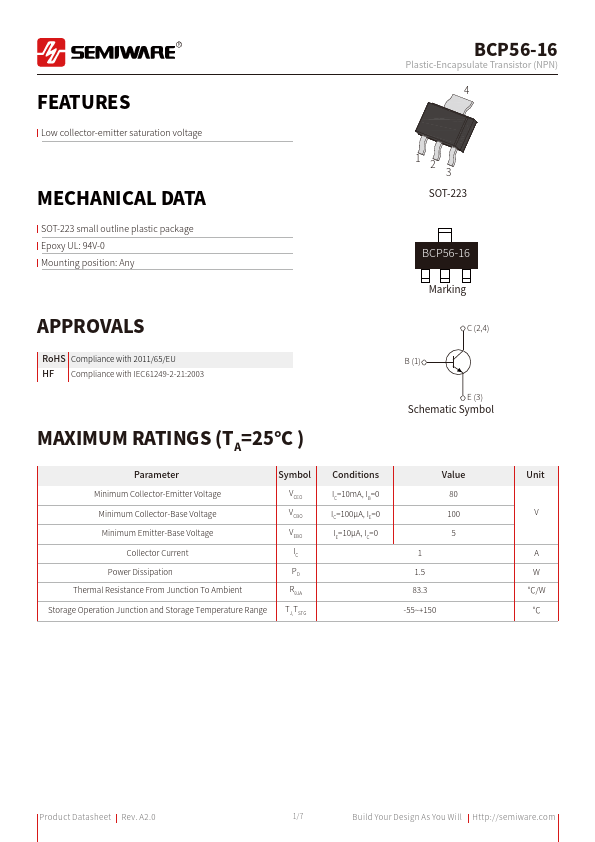

BCP56-16
FEATURES
Low collector-emitter saturation voltage
MECHANICAL DATA
SOT-223 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any
Plastic-Encapsulate Transistor (NPN)
12 3
SOT-223
Marking
APPROVALS
C (2,4)
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter
Symbol
Minimum Collector-Emitter Voltage
VCEO
Minimum Collector-Base Voltage
VCBO
Minimum Emitter-Base Voltage
VEBO
Collector Current
Power Dissipation
Thermal Resistance From Junction To Ambient
RθJA
Storage Operation Junction and Storage Temperature Range TJ,TSTG
Conditions IC=10m A, IB=0 IC=100μA, IE=0 IE=10μA, IC=0
B (1)
E (3)
Schematic Symbol
Value 80 100 5
1 1.5 83.3 -55~+150
Unit
A W ℃/W ℃
Product Datasheet Rev. A2.0
1/7
