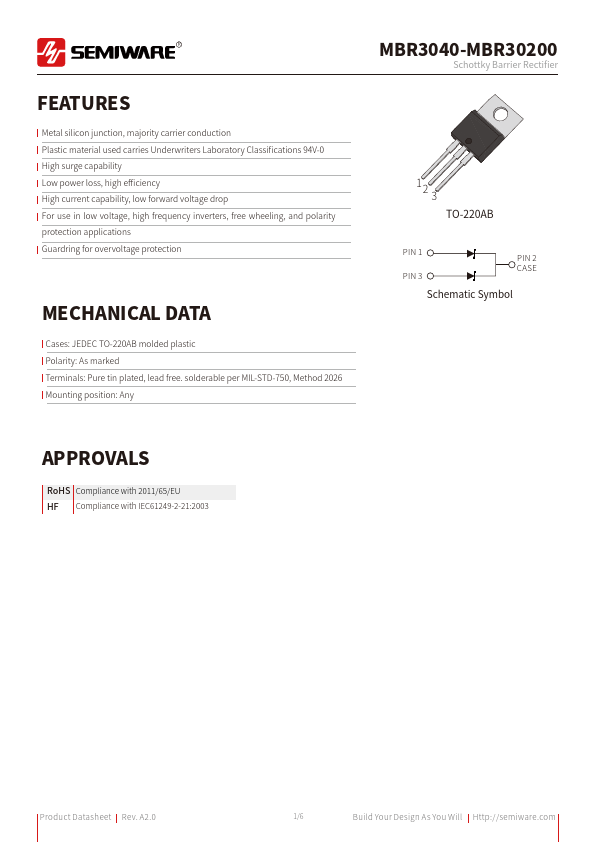

Datasheet Summary
Features
Metal silicon junction, majority carrier conduction Plastic material used carries Underwriters Laboratory Classifications 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protection
MECHANICAL DATA
Cases: JEDEC TO-220AB molded plastic Polarity: As marked Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Mounting position: Any
MBR3040-MBR30200
Schottky Barrier Rectifier
12 3 TO-220AB
PIN 1 PIN 3
PIN 2 CASE
Schematic Symbol
APPROVALS
RoHS pliance with 2011/65/EU...
