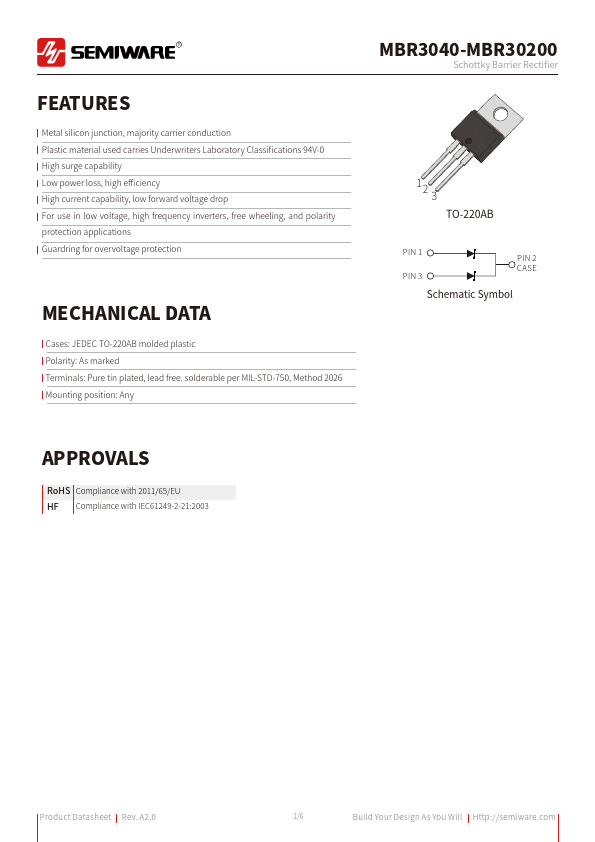

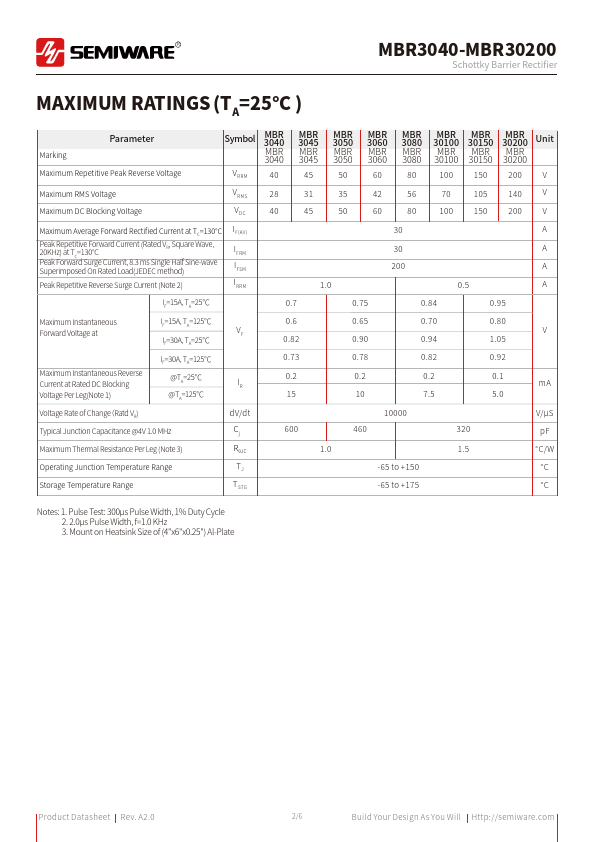

FEATURES Metal silicon junction, majority carrier conduction Plastic material used carries Underwriters Laboratory Classifications 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protection MECHANICAL DATA Cases: JEDEC TO-220AB molded plastic Polarity: As marked Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Mounting position: Any MBR3040-MBR30200 Schottky Barrier Rectifier 12 3 TO-220AB PIN 1 PIN 3 PIN 2 CASE Schematic Symbol APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 Product Datasheet Rev. A2.0 1/6 Build Your Design As You Will Http://semiware. MBR3040-MBR30200 Schottky Barrier Rectifier MAXIMUM RATINGS (TA=25°C ) Parameter Marking Maximum Repetitive Peak Reverse Voltage Symbol VRRM MBR 3040 MBR 3040 MBR 3045 MBR 3045 MBR 3050 MBR 3050 MBR 3060 MBR 3060 MBR 3080 MBR 3080 MBR 30100 MBR 30150 MBR 30200 Unit MBR MBR MBR 30100 30150 30200 Maximum RMS Voltage Maximum DC Blocking...
