Semiware MBR3045
Schottky Barrier Rectifier
| Part No. | MBR3045 |
|---|---|
| Datasheet | MBR3045 Download |
| Manufacturer |  Semiware |
| Description | Schottky Barrier Rectifier |
| Buy | Stock & Price |

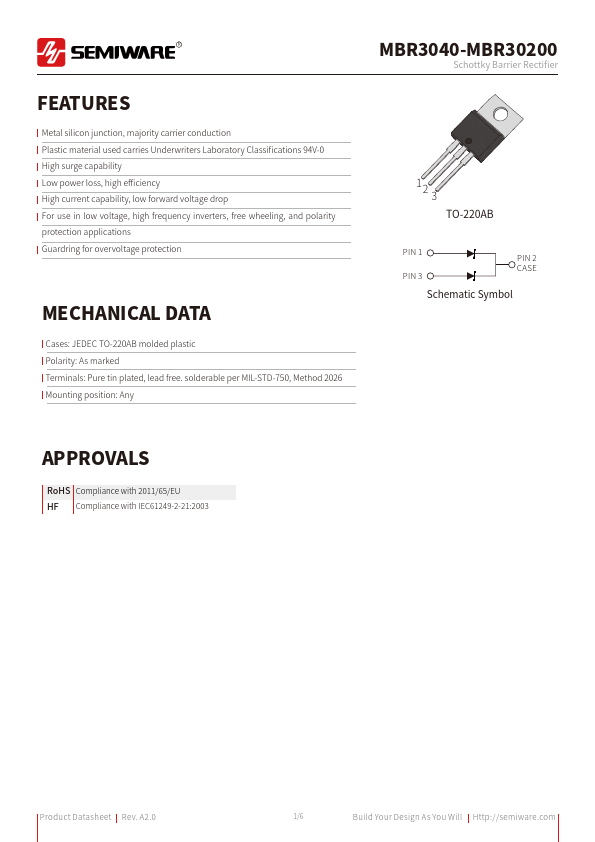

FEATURES
Metal silicon junction, majority carrier conduction Plastic material used carries Underwriters Laboratory Classifications 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protectionMECHANICAL DATA
Cases: JEDEC TO-220AB molded plastic Polarity: As marked Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Mounting position: Any MBR3040-MBR30200 Schottky Barrier Rectifier 12 3 TO-220AB PIN 1 PIN 3 PIN 2 CASE Schematic Symbol APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 Product Datasheet Rev. A2.0 1/6 Build Your Design As You Will R MBR3040-MBR30200 Schottky Barrier RectifierMAXIMUM RATINGS
(TA=25°C ) Parameter Marking Maximum Repetitive Peak Reverse Voltage Symbol VRRM MBR 3040 MBR 3040 40 MBR 3045 MBR 3045 45 MBR 3050 MBR 3050 50 MBR...
