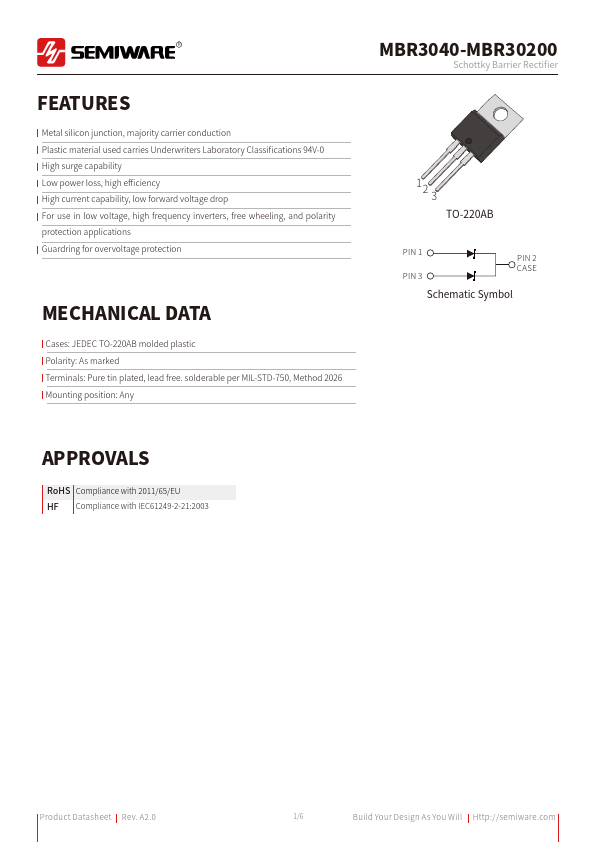

Features Metal silicon junction, majority carrier conduction Plastic material used carries Underwriters Laboratory Classifications 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protection MECHANICAL DATA Cases: JEDEC TO-220AB molded plastic Polarity: As marked Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Mounting position: Any MBR3040-MBR30200 Schottky Barrier Rectifier 12 3 TO-220AB PIN 1 PIN 3 PIN 2 CASE Schematic Symbol APPROVALS RoHS pliance with 2011/65/EU...
