SHR3425 - Small-Footprint Series Voltage Reference

Description

The SHR3425 device is a low temperature drift (3 ppm/°C), low-power, high-precision CMOS voltage reference, featuring ±0.08% initial accuracy, low operating current with power consumption less than 125 μA.

Features

  • Initial accuracy: ±0.08% (maximum).
  • Temperature coefficient: 3 ppm/°C.
  • Operating temperature range:.
  • 40°C to +125°C.
  • Output current: ±10 mA.
  • Low quiescent current: 125 μA.
  • Ultra-low zero load dropout voltage: 200 mV.
  • Input voltage: 2.7 ~ 5.5 V.
  • Output 1/f noise (0.1 Hz to 10 Hz): 15 µVp-p/V.
  • Long-term stability: 45 ppm/1000 hrs.
  • Small footprint 6 pin SOT-23 package pinouts: 2.

📥 Download Datasheet

Datasheet preview – SHR3425

Datasheet Details

Part number SHR3425
Manufacturer Shanhai Semiconductor
File Size 0.98 MB
Description Small-Footprint Series Voltage Reference
Datasheet download datasheet SHR3425 Datasheet

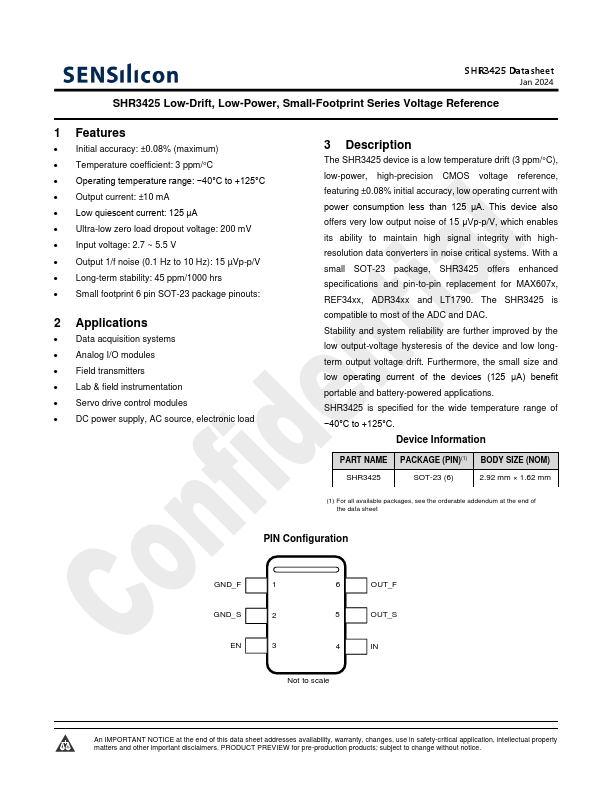

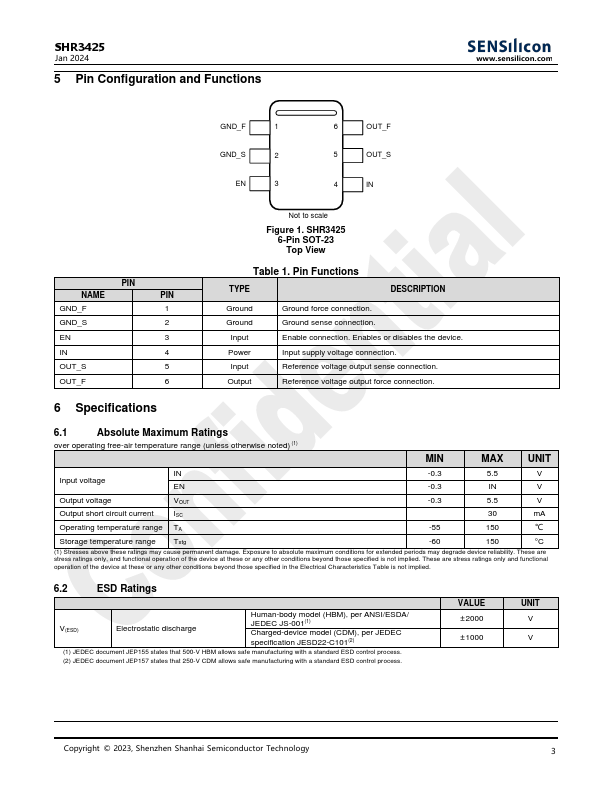

Additional preview pages of the SHR3425 datasheet.
