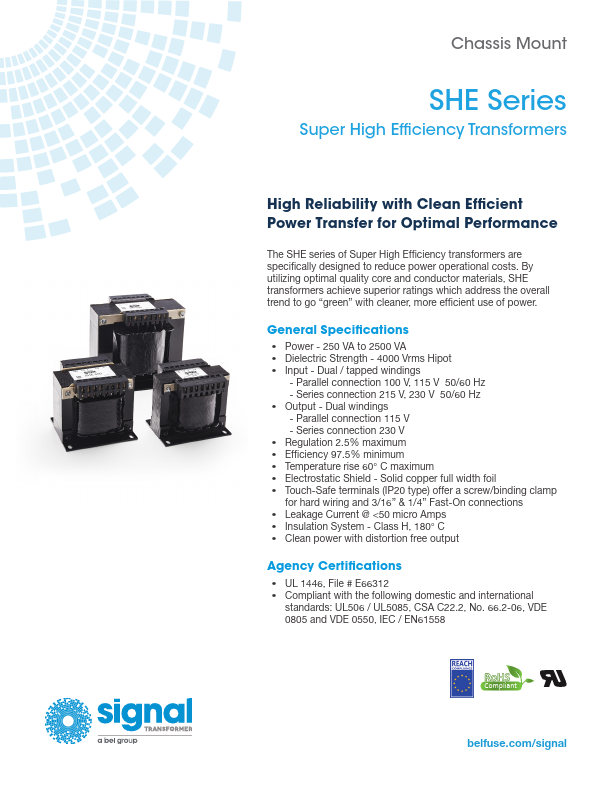

Chassis Mount
SHE Series
Super High Efficiency Transformers
High Reliability with Clean Efficient Power Transfer for Optimal Performance
The SHE series of Super High Efficiency transformers are specifically designed to reduce power operational costs. By utilizing optimal quality core and conductor materials, SHE transformers achieve superior ratings which address the overall trend to go “green” with cleaner, more efficient use of power.
General Specifications
• Power - 250 VA to 2500 VA • Dielectric Strength - 4000 Vrms Hipot • Input - Dual / tapped windings
- Parallel connection 100 V, 115 V 50/60 Hz - Series connection 215 V, 230 V 50/60 Hz • Output - Dual windings - Parallel connection 115 V - Series connection 230 V • Regulation 2.5% maximum • Efficiency 97.

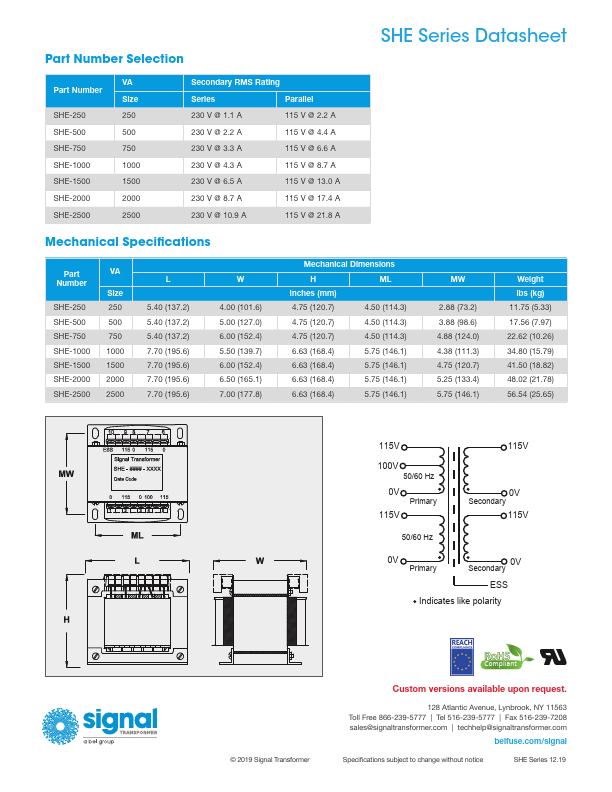

SHE-2500 Datasheet
