Datasheet Details
| Part number | SD4842P |
|---|---|
| Manufacturer | Silan Microelectronics |
| File Size | 787.06 KB |
| Description | PWM Controller |
| Datasheet |
 SD4842P Datasheet
|
|
|
This page provides the datasheet information for the SD4842P, a member of the SD4840 PWM Controller family.
| Part number | SD4842P |
|---|---|
| Manufacturer | Silan Microelectronics |
| File Size | 787.06 KB |
| Description | PWM Controller |
| Datasheet |
SD4842P Datasheet
|
|
|
|

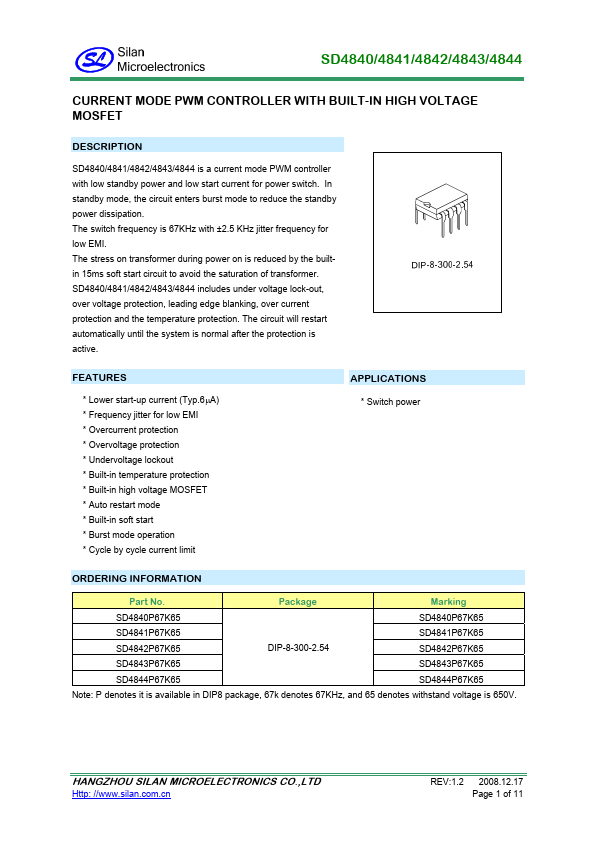

SD4840/4841/4842/4843/4844 is a current mode PWM controller with low standby power and low start current for power switch.
In standby mode, the circuit enters burst mode to reduce the standby power dissipation.
The switch frequency is 67KHz with ±2.5 KHz jitter frequency for low EMI.
