SDH2126 - 225V HIGH VOLTAGE HALF BRIDGE DRIVER

Description

The SDH2126 is high voltage N-type power MOSFET and IGBT half bridge driver, whose built-in VCC undervoltage lockout prevents the power device from working under low control voltage, and high-/low-side double high input interlock protection avoids the simultaneous conduction of both high side and l

Features

  • SOP-8-225-1.27.
  • High-side floating supply absolute voltage:225V.
  • Output current:+1A / -1.3A.
  • 3.3V / 5V / 15V input logic compatible.
  • High-/low-side interlock protection.
  • Under-voltage (UV) lockout.
  • dV/dt immune 3.

📥 Download Datasheet

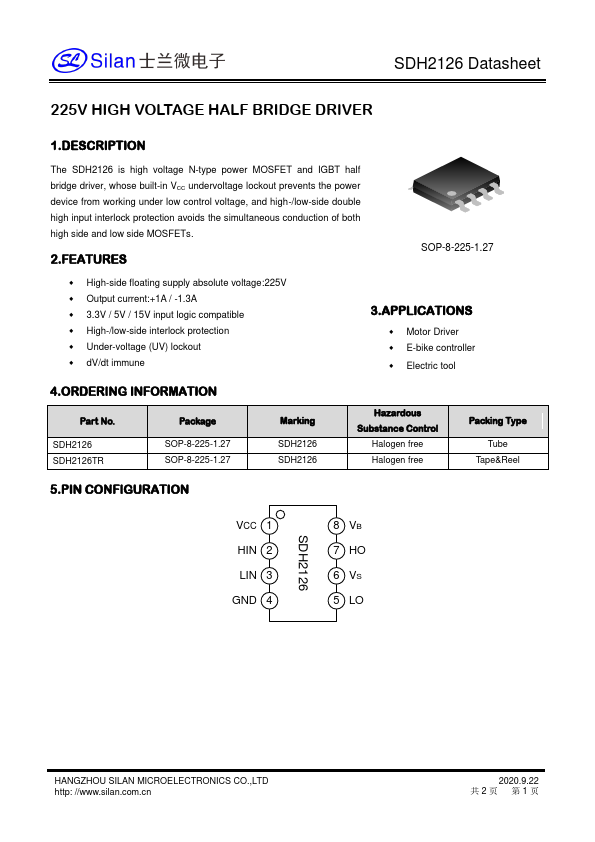

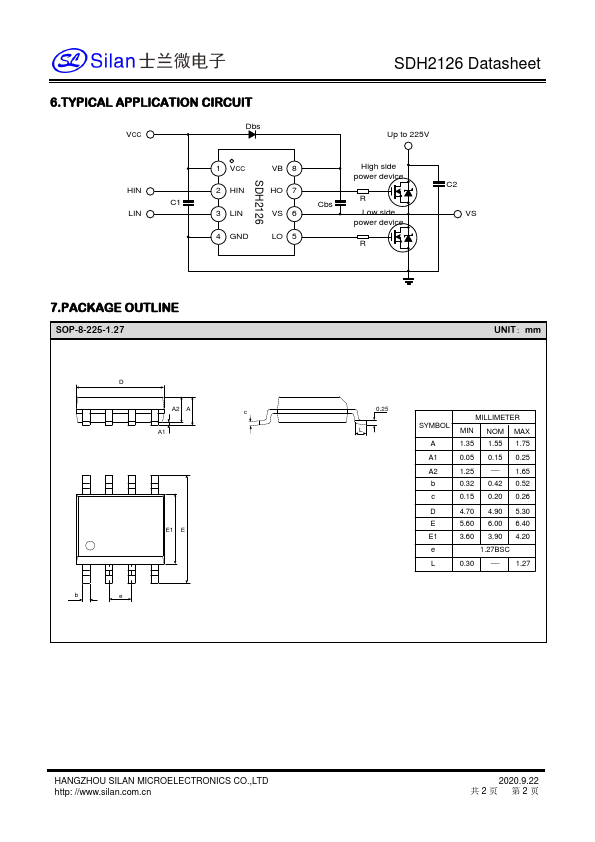

Datasheet preview – SDH2126
