SDM02M50DBE - 3 PHASE FULL-BRIDGE 500V/2A IPM

General Description

SDM02M50DBE/DBS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

Key Features

  • SOP-23H.
  • Built-in 500V/2A fast recovery MOSFET.
  • Built-in high-voltage Gate driver circuit（HVIC）.

📥 Download Datasheet

Datasheet Details

Part number SDM02M50DBE
Manufacturer Silan Microelectronics
File Size 363.29 KB
Description 3 PHASE FULL-BRIDGE 500V/2A IPM
Datasheet download datasheet SDM02M50DBE Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SDM02M30LP3 ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE Diodes
SDM0230CSP 0.2A SCHOTTKY BARRIER DIODE Diodes
SDM029N06D 60V N-Channel MOSFET YUHONG
SDM02U30CSP SCHOTTKY BARRIER DIODE Diodes
SDM02U30LP3 ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE Diodes

Other Datasheets by Silan Microelectronics

Part Number Description
SDM02M50DBS 3 PHASE FULL-BRIDGE 500V/2A IPM
SDM02M50DAE 500V/2A three-phase full-bridge driver IPM
SDM02M50DAS 500V/2A three-phase full-bridge driver IPM
SDM04P60DAS 600V/4A 3-PHASE FULL-BRIDGE IPM
SDM04V60DA2 600V/4A 3-PHASE FULL-BRIDGE IPM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

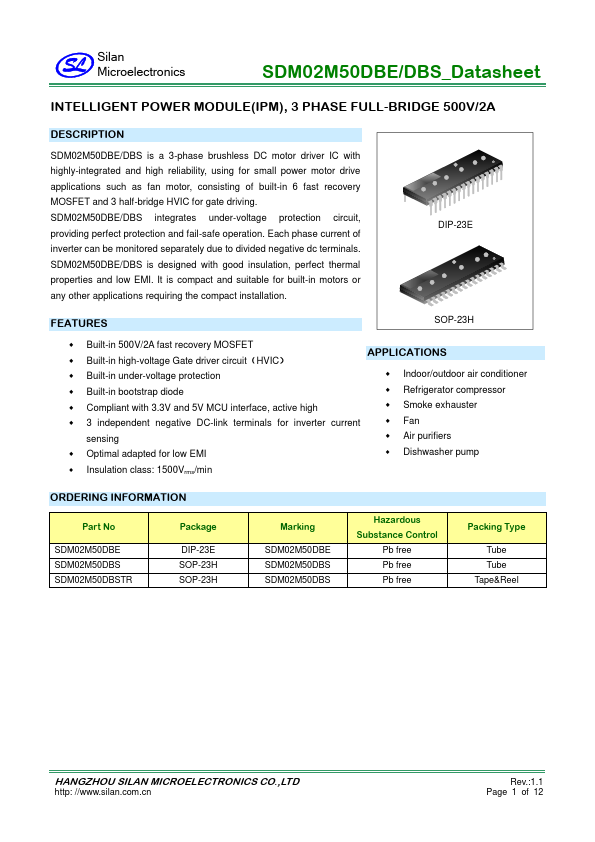

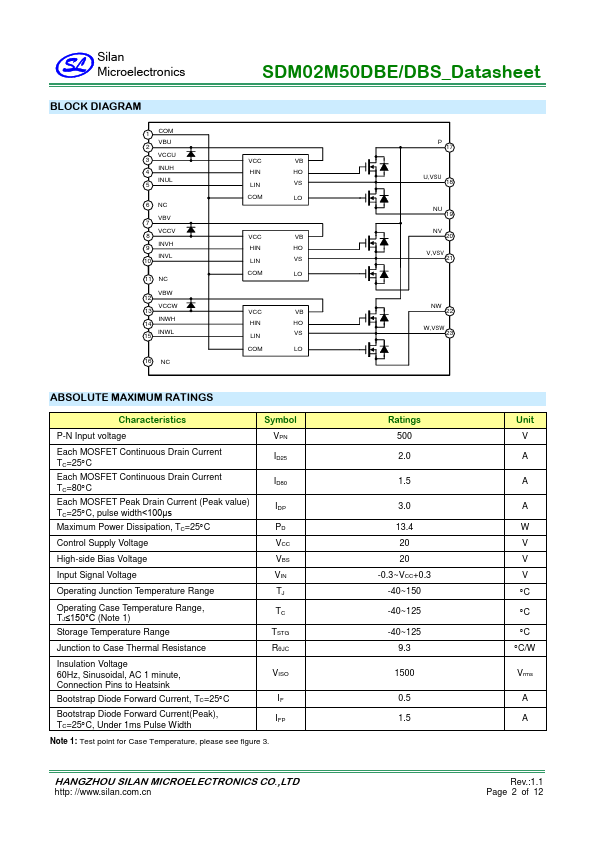

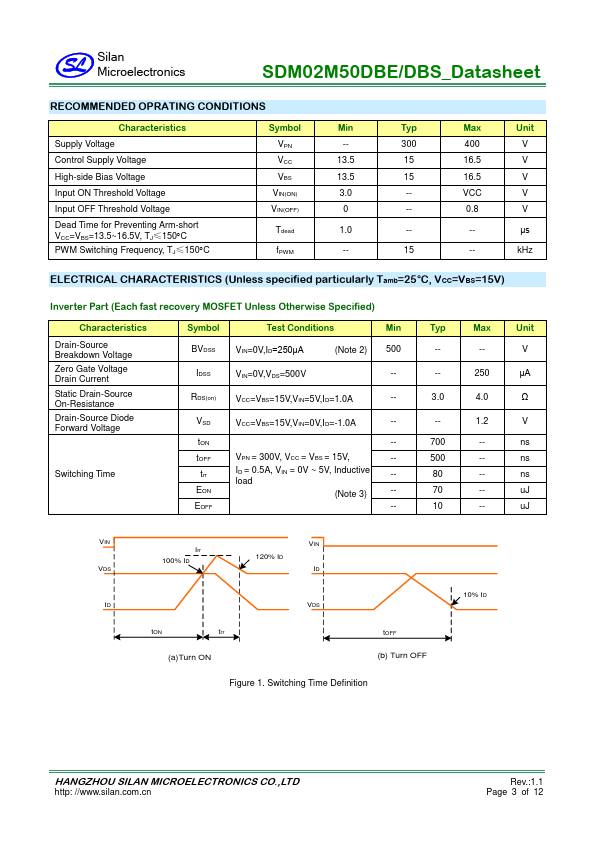

Silan Microelectronics SDM02M50DBE/DBS_Datasheet INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 500V/2A DESCRIPTION SDM02M50DBE/DBS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving. SDM02M50DBE/DBS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals. SDM02M50DBE/DBS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.
