SLG5NT1461V - 6A Load Switch

Product Overview

Silego

📥 Download Datasheet

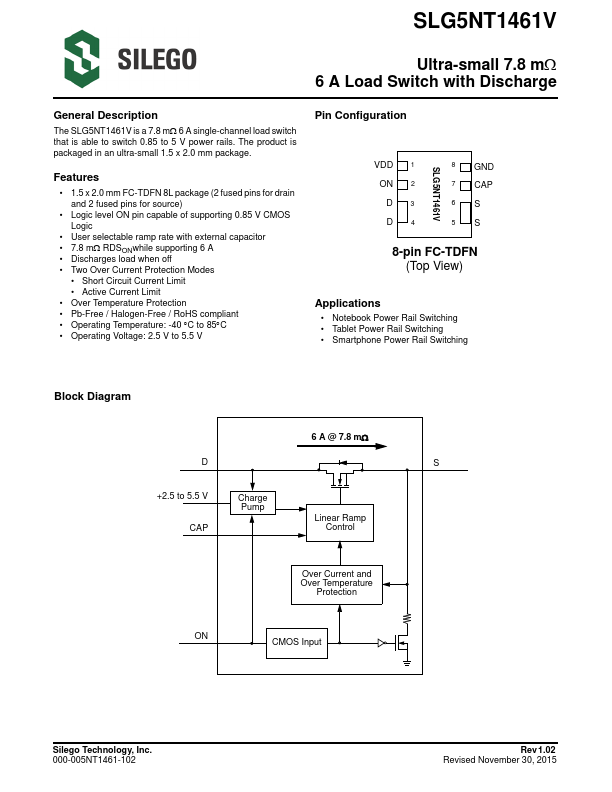

SLG5NT1461V 6A Load Switch by Silego - Datasheet Preview — Datasheet preview – SLG5NT1461V

Datasheet Details

Part number	SLG5NT1461V
Manufacturer	Silego
File Size	121.30 KB
Description	6A Load Switch
Datasheet	SLG5NT1461V Datasheet
Additional preview pages of the SLG5NT1461V datasheet.

SLG5NT1461V Product details

Description

The SLG5NT1461V is a 7.8 mΩ 6 A single-channel load switch that is able to switch 0.85 to 5 V power rails.

The product is packaged in an ultra-small 1.5 x 2.0 mm package.

Features

1.5 x 2.0 mm FC-TDFN 8L package (2 fused pins for drain and 2 fused pins for source).
Logic level ON pin capable of supporting 0.85 V CMOS Logic.
User selectable ramp rate with external capacitor.
7.8 mΩ RDSONwhile supporting 6 A.
Discharges load when off.
Two Over Current Protection Modes.
Short Circuit Current Limit.
Active Current Limit.
Over Temperature Protection.
Pb-Free / Halogen-Free / RoHS complia.
