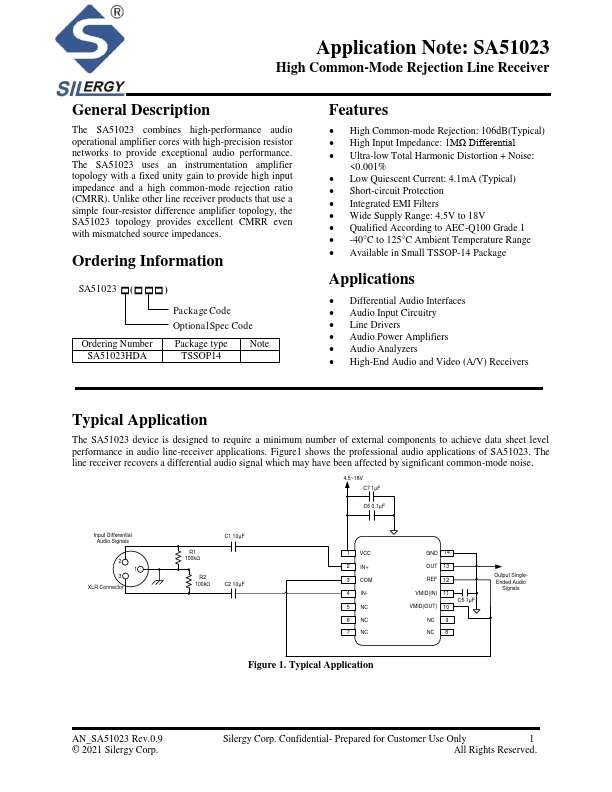

SA51023 Description
The SA51023 bines high-performance audio operational amplifier cores with high-precision resistor networks to provide exceptional audio performance. The SA51023 uses an instrumentation amplifier topology with a fixed unity gain to provide high input impedance and a high mon-mode rejection ratio (CMRR). Unlike other line receiver products that use a simple four-resistor difference amplifier topology, the SA51023...
SA51023 Key Features
- High mon-mode Rejection: 106dB(Typical)
- High Input Impedance: 1MΩ Differential
- Ultra-low Total Harmonic Distortion + Noise
- Low Quiescent Current: 4.1mA (Typical)
- Short-circuit Protection
- Integrated EMI Filters
- Wide Supply Range: 4.5V to 18V
- Qualified According to AEC-Q100 Grade 1
- 40°C to 125°C Ambient Temperature Range
- Available in Small TSSOP-14 Package
