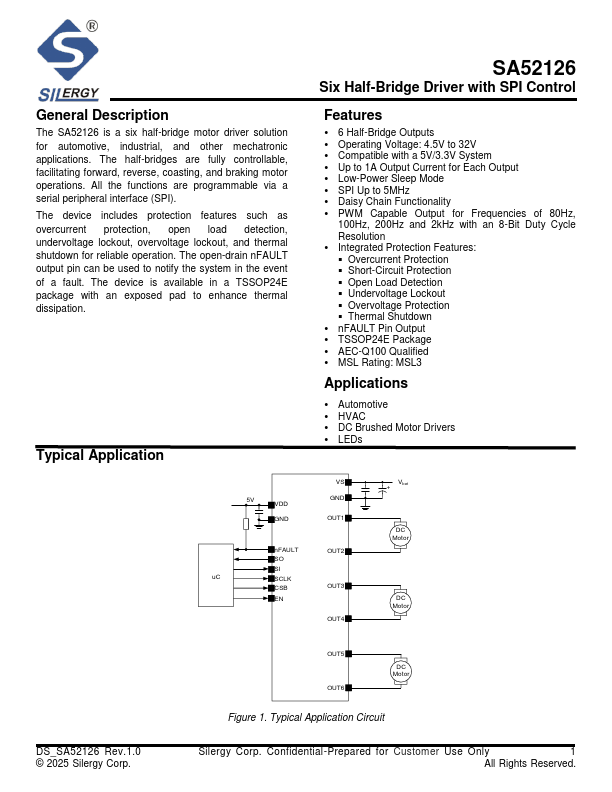

SA52126
Description
The SA52126 is a six half-bridge motor driver solution for automotive, industrial, and other mechatronic applications. The half-bridges are fully controllable, facilitating forward, reverse, coasting, and braking motor operations. All the functions are programmable via a serial peripheral interface (SPI).
The device includes protection features such as overcurrent protection, open load detection, undervoltage lockout, overvoltage lockout, and thermal shutdown for reliable operation. The open-drain n FAULT output pin can be used to notify the system in the event of a fault. The device is available in a TSSOP24E package with an exposed pad to enhance thermal dissipation.
Typical Application
5V
GND n FAULT
SI u C
SCLK
Six Half-Bridge Driver with SPI Control
Features
- 6 Half-Bridge Outputs
- Operating Voltage: 4.5V to 32V
- patible with a 5V/3.3V System
- Up to 1A Output Current for Each Output
- Low-Power Sleep Mode
- SPI Up to 5MHz
- Daisy...
