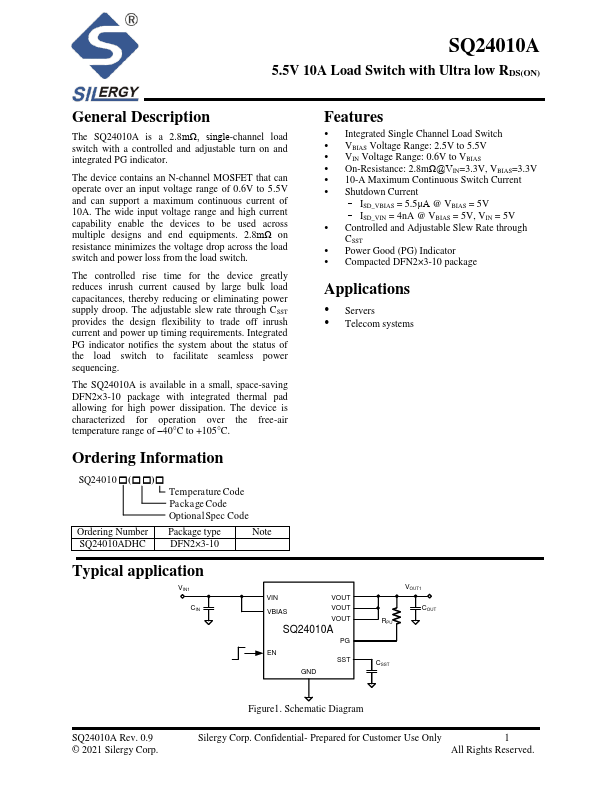

5.5V 10A Load Switch with Ultra low RDS(ON) General Description The SQ24010A is a 2.8mΩ, single-channel load switch with a controlled and adjustable turn on and integrated PG indicator. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6V to 5.5V and can support a maximum continuous current of 10A. The wide input voltage range and high current capability enable the devices to be used across multiple designs and end equipments. 2.8mΩ on resistance minimizes the voltage drop across the load switch and power loss from the load switch. The controlled rise time for the device greatly reduces inrush current caused by large bulk load capacitances, thereby reducing or eliminating power supply droop. The adjustable slew rate through CSST provides the design flexibility to trade off inrush current and power up timing requirements. Integrated PG indicator notifies the system about the status of the load switch to facilitate seamless power sequencing. The SQ24010A is available in a small, space-saving DFN2×3-10 package with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of - 40°C to +105°C. Features - Integrated Single Channel Load Switch - VBIAS Voltage Range: 2.5V to 5.5V - VIN Voltage Range: 0.6V to VBIAS - On-Resistance: 2.8mΩ@VIN=3.3V, VBIAS=3.3V - 10-A Maximum Continuous Switch Current - Shutdown Current - ISD_VBIAS = 5.5μA @ VBIAS = 5V - ISD_VIN = 4n A @ VBIAS = 5V, VIN = 5V - Controlled and Adjustable Slew Rate through CSST - Power Good (PG) Indicator - pacted DFN2×3-10 package Applications - Servers - Tele systems Ordering Information SQ24010 - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SQ24010ADHC DFN2×3-10 Typical...
