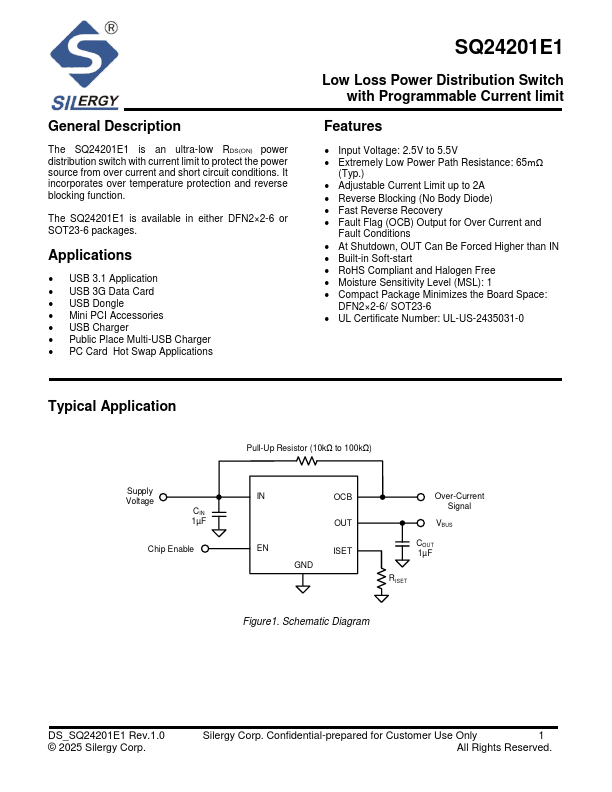

SQ24201E1
Description
The SQ24201E1 is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions.
Key Features
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ
- Adjustable Current Limit up to 2A
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
- Fault Flag (OCB) Output for Over Current and
- At Shutdown, OUT Can Be Forced Higher than IN
- Built-in Soft-start
- RoHS pliant and Halogen Free
- Moisture Sensitivity Level (MSL): 1
Applications
- USB 3.1 Application
