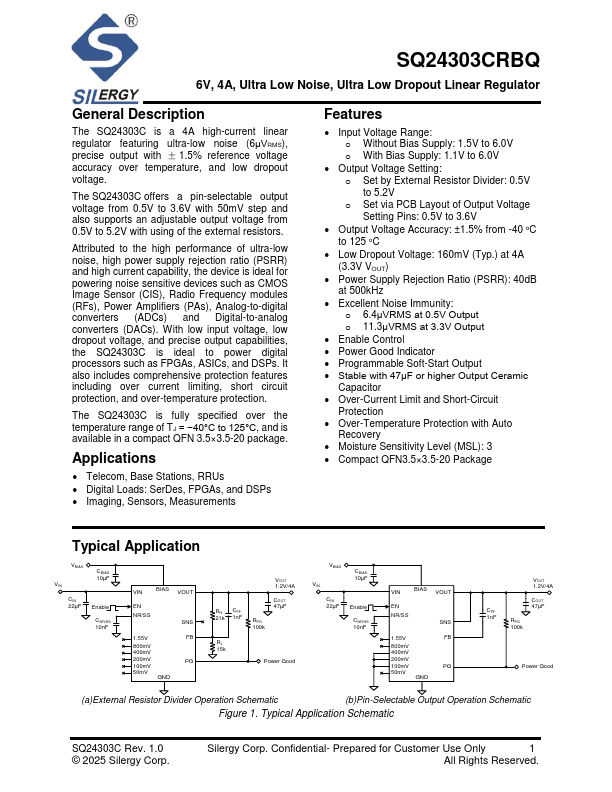

SQ24303CRBQ Description
The SQ24303C is a 4A high-current linear regulator featuring ultra-low noise (6μVRMS), precise output with ± 1.5% reference voltage accuracy over temperature, and low dropout voltage. The SQ24303C offers a pin-selectable output voltage from 0.5V to 3.6V with 50mV step and also supports an adjustable output voltage from 0.5V to 5.2V with using of the external resistors. Attributed to the high performance of ultra-low...
