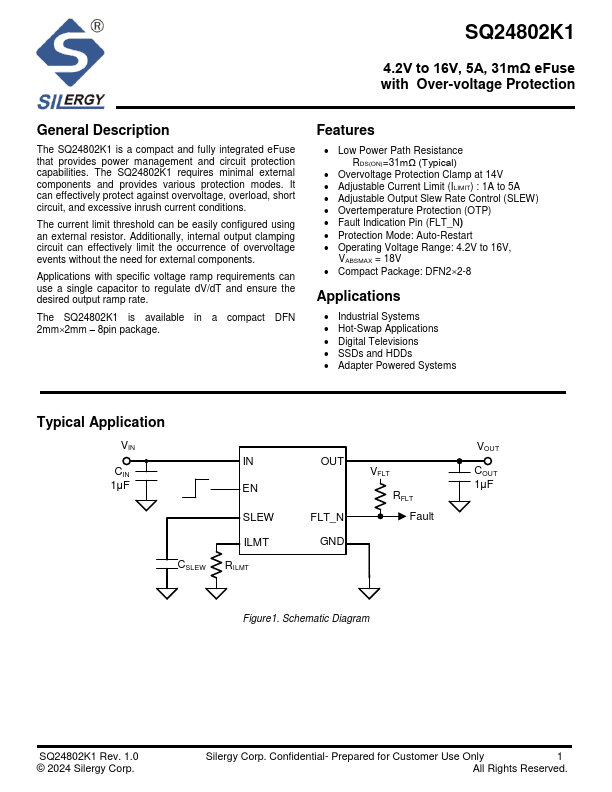

SQ24802K1
Description
The SQ24802K1 is a pact and fully integrated eFuse that provides power management and circuit protection capabilities.
Key Features
- Low Power Path Resistance RDS(ON)=31mΩ (Typical)
- Overvoltage Protection Clamp at 14V
- Adjustable Current Limit (ILIMIT) : 1A to 5A
- Adjustable Output Slew Rate Control (SLEW)
- Overtemperature Protection (OTP)
- Fault Indication Pin (FLT_N)
- Protection Mode: Auto-Restart
- Operating Voltage Range: 4.2V to 16V
