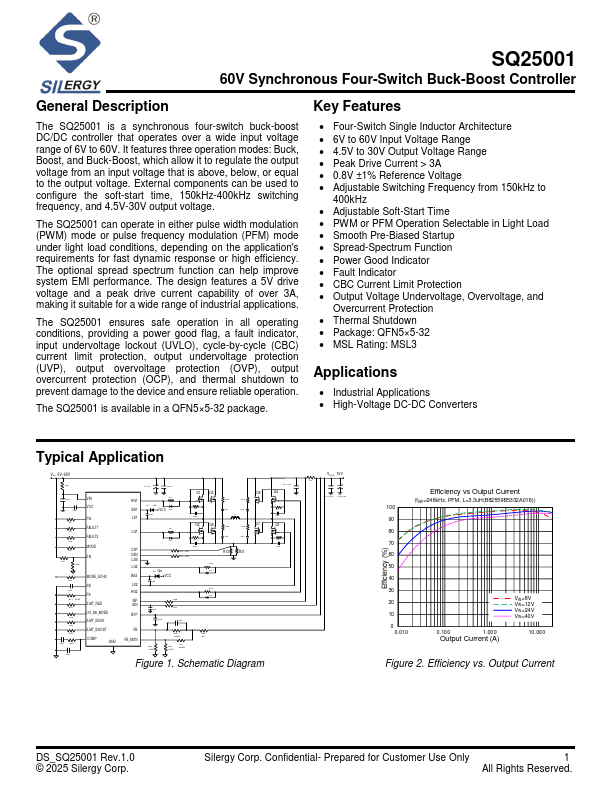

Silergy SQ25001
The SQ25001 is a synchronous four-switch buck-boost DC/DC controller that operates over a wide input voltage range of 6V to 60V. It features three operation modes: Buck, Boost, and Buck-Boost, which allow it to regulate the output voltage from an input voltage that is above, below, or equal to the output voltage. The SQ25001 can operate in either pulse width modulation (PWM) mode or pulse frequency modulation (PFM) mode under light load conditions, depending on the application's requirements for fast dynamic response or high efficiency.| Part No. | SQ25001 |
|---|---|
| Datasheet | SQ25001 Download |
| Manufacturer |  Silergy |
| Description | 60V Synchronous Four-Switch Buck-Boost Controller |
| Buy | Stock & Price |
GENERAL DESCRIPTION
External components can be used to configure the soft-start time, 150kHz-400kHz switching frequency, and 4.5V-30V output voltage. The optional spread spectrum function can help improve system EMI performance. The design features a 5V drive voltage and a peak drive current capability of over 3A, making it suitable for a wide range of industrial applications. The SQ25001 ensures safe operation in all operating conditions, providing a power good flag, a fault indicator, input undervoltage lockout (UVLO), cycle-by-cycle (CBC) current limit protection, output undervoltage protection (UVP), output overvoltage protection (OVP), output overcurrent protection (OCP), and thermal shutdown to prevent damage to the device and ensure reliable operation. The SQ25001 is available in a QFN5×5-32 package. KeyFEATURES
● Four-Switch Single Inductor Architecture● 6V to 60V Input Voltage Range
● 4.5V to 30V Output Voltage Range
● Peak Drive Current > 3A
● 0.8V ±1% Reference Voltage
● A...
