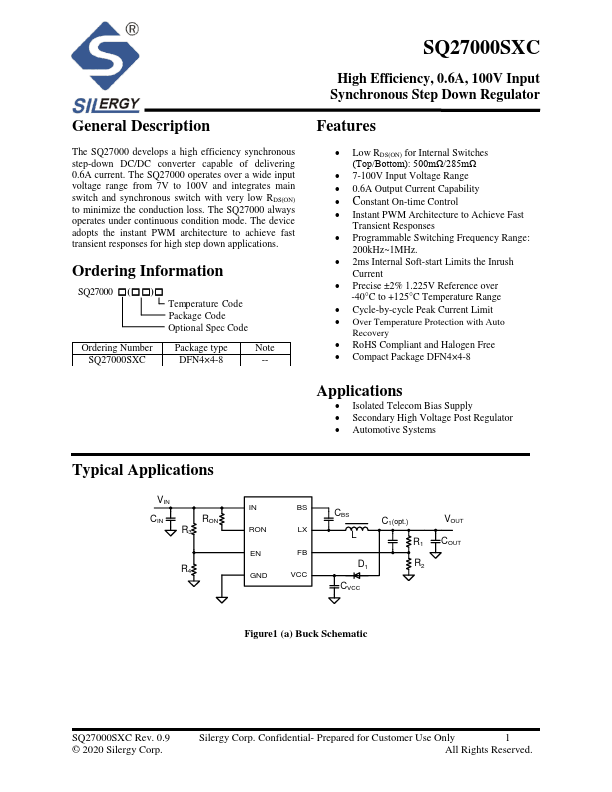

SQ27000SXC Overview
The SQ27000 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 0.6A current. The SQ27000 operates over a wide input voltage range from 7V to 100V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SQ27000 always operates under continuous condition mode.
SQ27000SXC Key Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 500mΩ/285mΩ
- 7-100V Input Voltage Range
- 0.6A Output Current Capability
- Constant On-time Control
- Instant PWM Architecture to Achieve Fast Transient Responses
- Programmable Switching Frequency Range: 200kHz~1MHz
- 2ms Internal Soft-start Limits the Inrush Current
- Precise ±2% 1.225V Reference over -40°C to +125°C Temperature Range
- Cycle-by-cycle Peak Current Limit
- Over Temperature Protection with Auto
