Silergy SQ28003
The SQ28003 is a high efficiency 2.2MHz synchronous step down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The SQ28003 is in a space saving, low profile DFN1.5×1.5-6 package.| Part No. | SQ28003 |
|---|---|
| Datasheet | SQ28003 Download |
| Manufacturer |  Silergy |
| Description | Synchronous Step Down Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION

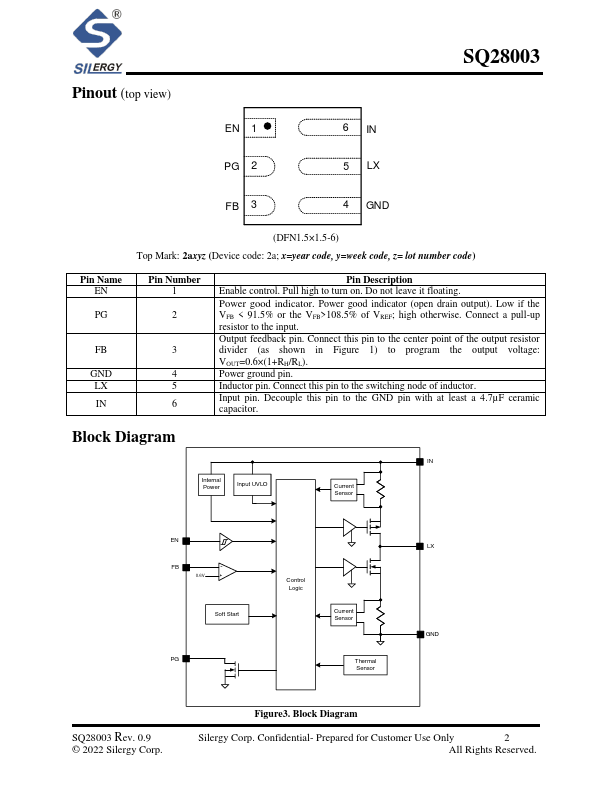

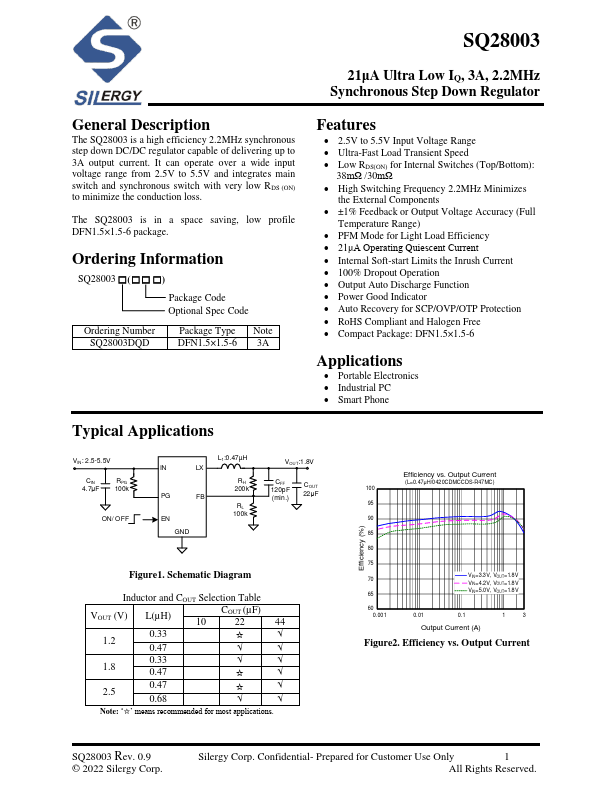

Ordering Information SQ28003 □(□□ □) Package Code Optional Spec Code Ordering Number SQ28003DQD Package Type Note DFN1.5×1.5-6 3AFEATURES
● 2.5V to 5.5V Input Voltage Range● Ultra-Fast Load Transient Speed
● Low RDS(ON) for Internal Switches (Top/Bottom): 38mΩ /30mΩ
● High Switching Frequency 2.2MHz Minimizes the External Components
● ±1% Feedback or Output Voltage Accuracy (Full Temperature Range)
● PFM Mode for Light Load Efficiency
● 21μA Operating Quiescent Current
● Internal Soft-start Limits the Inrush Current
● 100% Dropout Operation
● Output Auto Discharge Function
● Power Good Indicator
● Auto Recovery for SCP/OVP/OTP Protection
● RoHS Compliant and Halogen Free
● Compact Package: DFN1.5×1.5-6
APPLICATIONS
● Portable Electronics● Industrial PC
● Smart Phone Typical
APPLICATIONS
