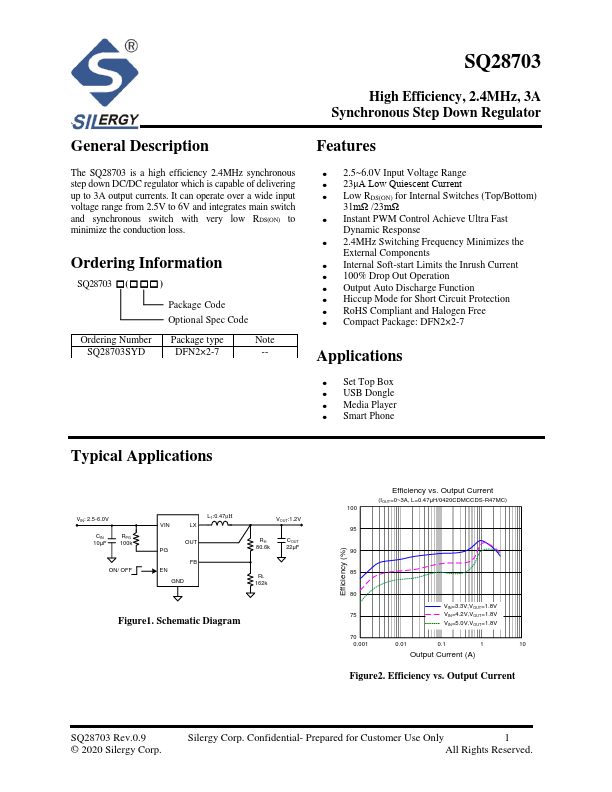

` General Description The SQ28703 is a high efficiency 2.4MHz synchronous step down DC/DC regulator which is capable of delivering up to 3A output currents. It can operate over a wide input voltage range from 2.5V to 6V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number Package type Note SQ28703SYD DFN2×2-7 -- High Efficiency, 2.4MHz, 3A Synchronous Step Down Regulator Features - 2.5~6.0V Input Voltage Range - 23μA Low Quiescent Current - Low RDS(ON) for Internal Switches (Top/Bottom) 31mΩ /23mΩ - Instant PWM Control Achieve Ultra Fast Dynamic Response - 2.4MHz Switching Frequency Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - 100% Drop Out Operation - Output Auto Discharge Function - Hiccup Mode for Short Circuit Protection - Ro HS pliant and Halogen Free - pact Package: DFN2×2-7 Applications - Set Top...
