Silergy SQ76106B
SQ76106B is a synchronous DC-DC step down power module with integrated inductor. It is capable of delivering maximum 6A to the load over a wide input and output range. The operating supply voltage range is from 2.85V to 16V.| Part No. | SQ76106B |
|---|---|
| Datasheet | SQ76106B Download |
| Manufacturer |  Silergy |
| Description | Synchronous Step-Down Power Module |
| Buy | Stock & Price |
GENERAL DESCRIPTION
The output voltage is adjustable from 0.6V externally. It requires a minimum number of standard and readily available external components with a compact package size of 3mm*3mm*1.7mm.APPLICATIONS
● Telecom and Networking systems● Servers
● High power AP
● General Pol
FEATURES
● 2.85V to 16V Input Voltage Range● Output adjustable from 0.6V
● Output current： 0.6V to 3.3V：6A Above 3.3V：5A
● Smooth Pre-biases startup
● Selectable FCCM for low VOUT ripple and PFM for high light load efficiency
● Fixed 1.1MHz Operating Frequency
● External Programmable soft start time
● Power-Good and EN for Power sequencing
● Cycle by cycle over current protection(OCP) with auto-recovery hiccup mode
● Cycle by cycle reverse current protection under FCCM
● Auto-Recovery for Output Under voltage (UVP), Output Overvoltage (OVP) and Over temperature (OTP) Conditions
● Package: MQFN 3mm*3mm-19

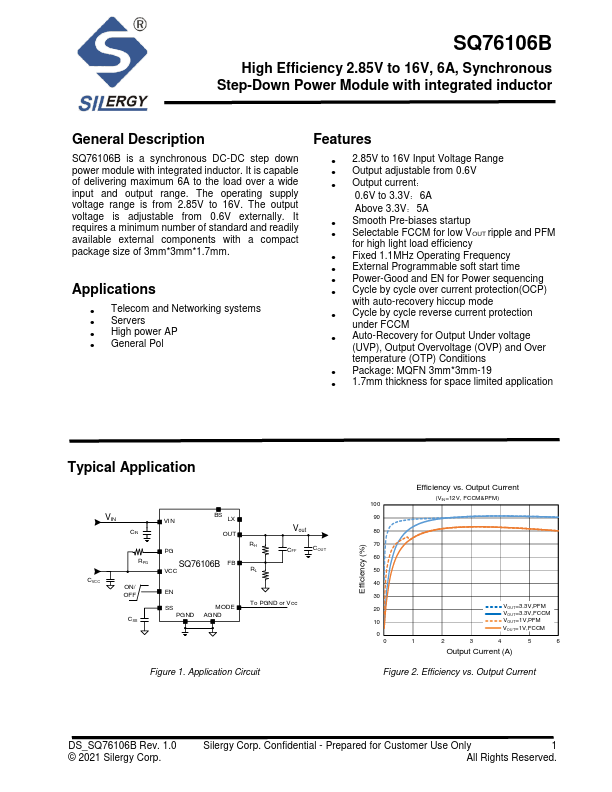

● 1.7mm thickness for space limited application Typical Application VIN CIN CVCC RPG ON/ OFF CSS VI N BS LX OUT RH PG SQ76106B FB VCC RL Vout CFF COUT EN SS MODE PGND AGND To PGND or Vcc Figure 1.
