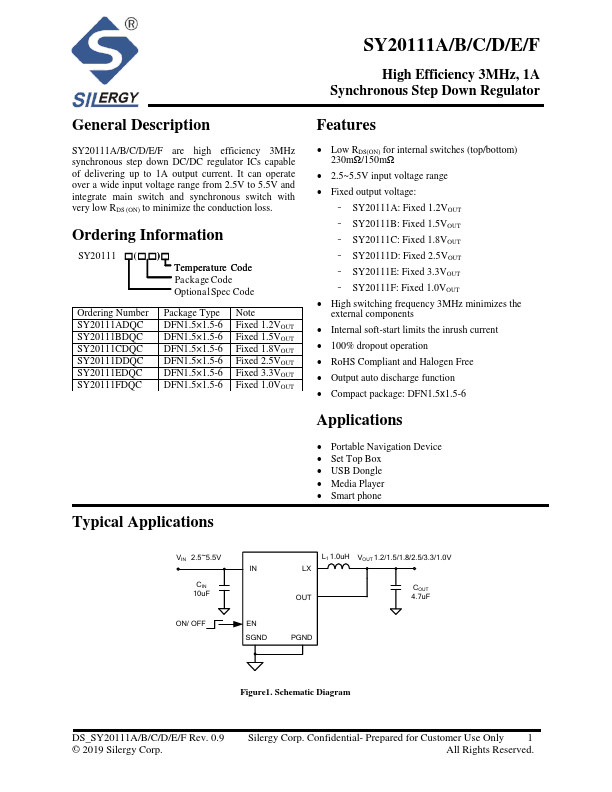

Description SY20111A/B/C/D/E/F are high efficiency 3MHz synchronous step down DC/DC regulator ICs capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Ordering Information SY20111 - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number SY20111ADQC SY20111BDQC SY20111CDQC SY20111DDQC SY20111EDQC SY20111FDQC Package Type DFN1.5×1.5-6 DFN1.5×1.5-6 DFN1.5×1.5-6 DFN1.5×1.5-6 DFN1.5×1.5-6 DFN1.5×1.5-6 Note Fixed 1.2VOUT Fixed 1.5VOUT Fixed 1.8VOUT Fixed 2.5VOUT Fixed 3.3VOUT Fixed 1.0VOUT Typical Applications Features - Low RDS(ON) for internal switches (top/bottom) 230mΩ/150mΩ - 2.5~5.5V input voltage range - Fixed output voltage: ﹣ SY20111A: Fixed 1.2VOUT ﹣ SY20111B: Fixed 1.5VOUT ﹣ SY20111C: Fixed 1.8VOUT ﹣ SY20111D: Fixed 2.5VOUT ﹣ SY20111E: Fixed 3.3VOUT ﹣ SY20111F: Fixed 1.0VOUT - High switching frequency 3MHz minimizes the external ponents - Internal soft-start limits the inrush current - 100% dropout operation - Ro HS pliant and Halogen Free - Output auto discharge function - pact package: DFN1.5x1.5-6 Applications - Portable Navigation Device - Set Top Box - USB Dongle - Media Player - Smart phone VIN 2.5~5.5V CIN 10u F ON/ OFF EN SGND L1 1.0u H VOUT 1.2/1.5/1.8/2.5/3.3/1.0V LX COUT 4.7u F PGND Figure1. Schematic Diagram DS_SY20111A/B/C/D/E/F Rev. 0.9 © 2019 Silergy Corp. Silergy Corp. Confidential- Prepared for Customer Use Only 1 All Rights Reserved. SY20111A/B/C/D/E/F...
