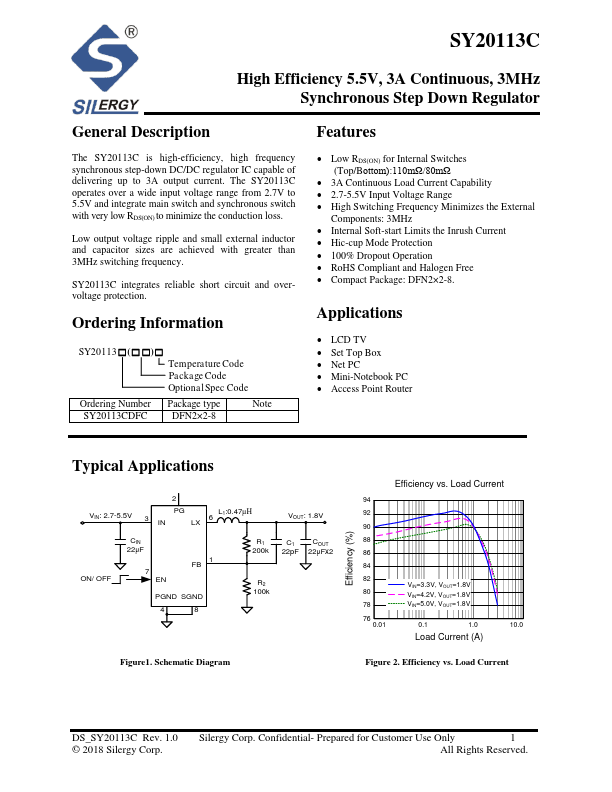

SY20113C
SY20113C is 3MHz Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20113C is high-efficiency, high frequency synchronous step-down DC/DC regulator IC capable of delivering up to 3A output current. The SY20113C operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 3MHz switching frequency.
SY20113C integrates reliable short circuit and overvoltage protection.
Ordering Information
SY20113- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20113CDFC DFN2×2-8
Features
- Low RDS(ON) for Internal Switches (Top/Bottom):110mΩ/80mΩ
- 3A Continuous Load Current Capability
- 2.7-5.5V Input Voltage Range
- High Switching Frequency Minimizes the External ponents: 3MHz
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Protection
- 100% Dropout Operation
- Ro HS pliant and Halogen Free
- pact Package: DFN2×2-8.
Applications
- LCD TV
- Set Top Box
- Net PC
- Mini-Notebook PC
- Access Point Router
Typical Applications
VIN: 2.7-5.5V
PG LX
6 L1:0.47µH
VOUT: 1.8V
ON/ OFF
CIN 22μF
7 EN
1 FB
PGND SGND
R1...
