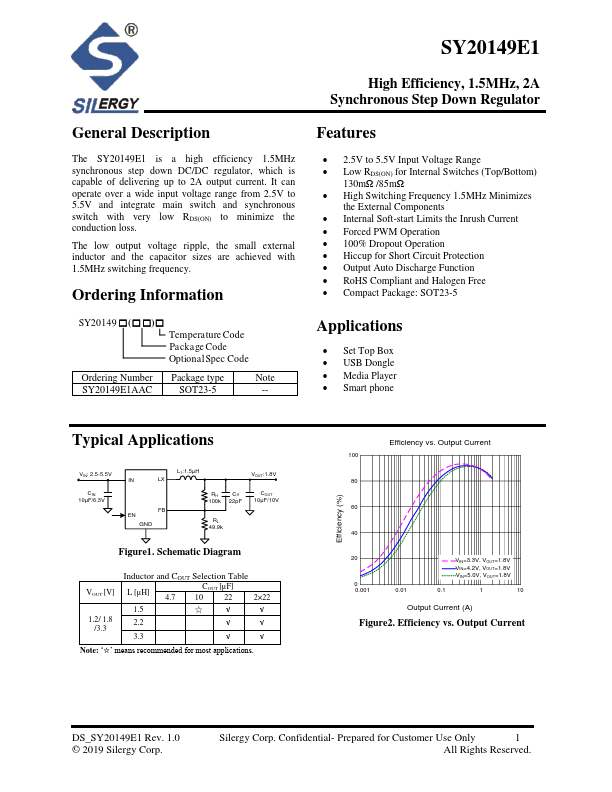

SY20149E1
SY20149E1 is 2A Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20149E1 is a high efficiency 1.5MHz synchronous step down DC/DC regulator, which is capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1.5MHz switching frequency.
Ordering Information
SY20149
- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20149E1AAC
SOT23-5
--
High Efficiency, 1.5MHz, 2A Synchronous Step Down Regulator
Features
- 2.5V to 5.5V Input Voltage Range
- Low RDS(ON) for Internal Switches (Top/Bottom)
130mΩ /85mΩ
- High Switching Frequency 1.5MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- Forced PWM Operation
- 100% Dropout Operation
- Hiccup for Short Circuit Protection
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: SOT23-5
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart phone
Typical Applications
VIN: 2.5-5.5V
CIN 10μF/6.3V
FB EN
L1:1.5µH
VOUT:1.8V...
