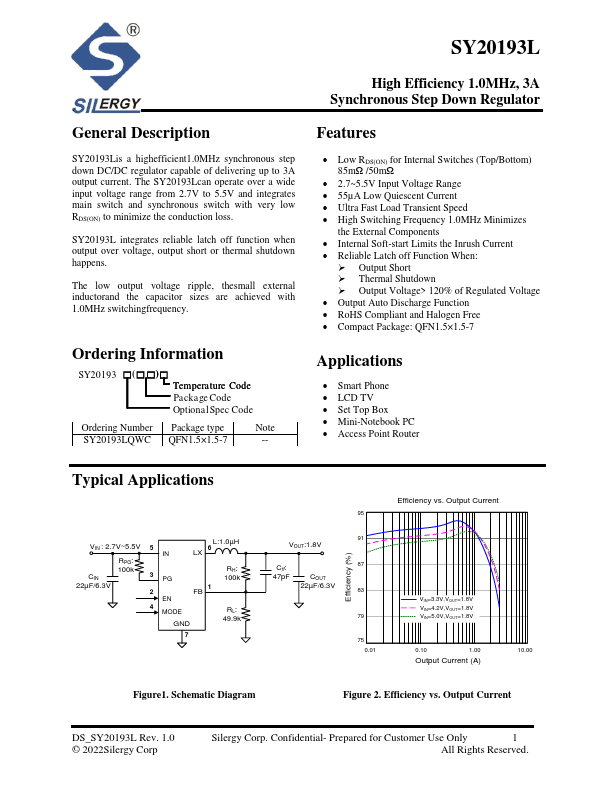

Description SY20193Lis a highefficient1.0MHz synchronous step down DC/DC regulator capable of delivering up to 3A output current. The SY20193Lcan operate over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY20193L integrates reliable latch off function when output over voltage, output short or thermal shutdown happens. The low output voltage ripple, thesmall external inductorand the capacitor sizes are achieved with 1.0MHz switchingfrequency. Ordering Information SY20193 - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20193LQWC QFN1.5×1.5-7 -- High Efficiency 1.0MHz, 3A Synchronous Step Down Regulator Features - Low RDS(ON) for Internal Switches (Top/Bottom) 85mΩ /50mΩ - 2.7~5.5V Input Voltage Range - 55µA Low Quiescent Current - Ultra Fast Load Transient Speed - High Switching Frequency 1.0MHz Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - Reliable Latch off Function When: - Output Short - Thermal Shutdown - Output Voltage> 120% of Regulated Voltage - Output Auto Discharge Function - Ro HS pliant and Halogen Free - pact Package: QFN1.5×1.5-7 Applications - Smart Phone - LCD TV - Set Top Box - Mini-Notebook PC - Access Point Router Typical Applications VIN : 2.7V~5.5V 5 IN RPG: 100k 3...
