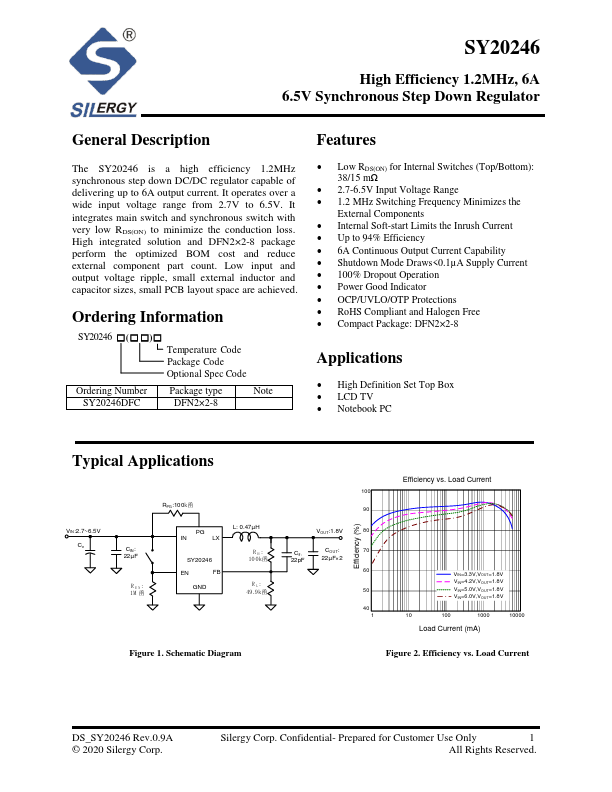

SY20246 Datasheet | Silergy

Description Features The SY20246 is a high efficiency 1.2MHz synchronous step down DC/DC regulator capable of delivering up to 6A output current. It operates over a wide input voltage range from 2.7V to 6.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2×2-8 package perform the optimized BOM cost and reduce external ponent part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved. Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY20246DFC DFN2×2-8 - Low RDS(ON) for Internal Switches (Top/Bottom): 38/15 mΩ - 2.7-6.5V Input Voltage Range - 1.2 MHz Switching Frequency Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - Up to 94% Efficiency - 6A Continuous Output Current Capability - Shutdown Mode Draws<0.1µA Supply Current - 100% Dropout Operation - Power Good Indicator - OCP/UVLO/OTP Protections - Ro HS pliant and Halogen Free - pact Package: DFN2×2-8 Applications - High Definition Set Top Box - LCD TV - Notebook PC Typical Applications VIN :2.7~6.5V Ce CIN : 22µF R EN: 1M RPG :10 0k L: 0.47µH RH: 10 0k R L: 49 .9k Figure 1. Schematic Diagram VOUT:1.8V Cff : 22p F COUT: 22µF×2 Efficiency...
